Connector End View (C3345) - SECOND ROW SEAT MOTOR LH

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CPSD2 (VT-GN)

18

CTRL MOD. - SECOND ROW MOTOR LH

2

GD382 (BK-GY)

18

GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT

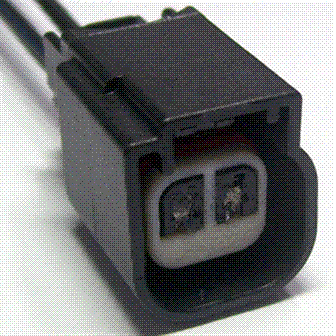

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1052

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-JLB

Gauge:

14

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses

A/C Compressor Clutch

Actuator - Door Lock

Actuator - Door Lock - LH - Front

Actuator - Door Lock - LH - Rear

Actuator - Door Lock - LH - Sliding Door

Actuator - Door Lock - RH - Front

Actuator - Door Lock - RH - Rear

Actuator - Door Lock - RH - Sliding Door

Actuator - Liftgate Glass

Lamp - Headlamp - Low Beam

Lamp - License

Lamp - Side Marker

Motor - Power Window - LH - Rear

Pump - Fuel (External)

Sensor - Side Impact

Solenoid - Brake Shift Park Interlock

Speaker - Door (front)

Speaker - Door (rear)

Speaker - Front

Speaker - Rear

Speaker - Tweeter - LH - Front

Speaker - Tweeter - LH - Rear

Speaker - Tweeter - RH - Front

Speaker - Tweeter - RH - Rear
