Connector End View (C1833) - TURBOCHARGER BYPASS (TCBY) VALVE

Connector: C1833

Description

TURBOCHARGER BYPASS (TCBY) VALVE

Color

LT GY

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBK03 (GY)	18	FUSE - 12 OR CIRCUIT BREAKER
2	CE148 (YE-GY)	18	CTRL MOD. - POWERTRAIN # TURBOCHARGER BYPASS (TCBY) VALVE

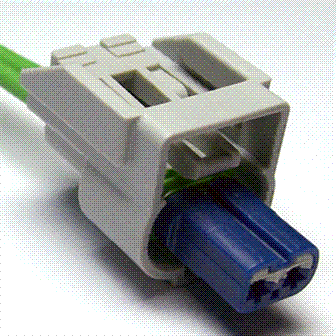

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1303

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ATA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Solenoid - Turbo Charger Bypass
