Connector End View (C1657) - ENGINE OIL PRESSURE (EOP) SENSOR

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CMC14 (BN-YE)

18

SENSOR - LOW LEVEL ENGINE OIL

2

RE454 (YE-GN)

18

CTRL MOD. - POWERTRAIN # SIGNAL RETURN (SIGRTN)

3

LE458 (BU-WH)

18

CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF)

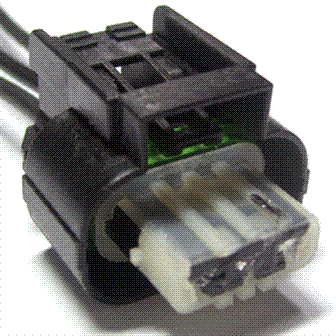

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1066

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-GA

Gauge:

14

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses

Sensor - Fuel Rail Pressure
