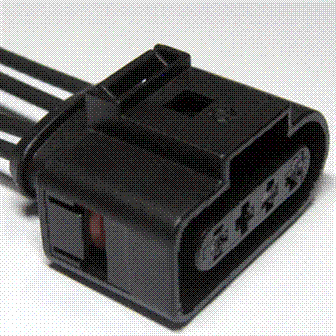

Connector End View (C1656) - WINDSHIELD WIPER MOTOR RH

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CRW25 (BU-GY)

14

RELAY - FRONT WIPER PARK

2

GD123 (BK-GY)

14

GROUND - FENDER FRONT RIGHT

3

VRW28 (WH-OG)

20

MOTOR - FRONT WIPER MASTER # MOTOR FRONT WIPER SLAVE

4

*

*

Not Used

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1135

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-JA

Gauge:

14

Pin material:

Tin (greased)

Cavities:

4

Vehicle Uses

Motor - Windshield Wiper
