Connector End View (C1654) - CAMSHAFT POSITION BANK 2 SENSOR 2 (CMP22)
Connector: C1654
Description
CAMSHAFT POSITION BANK 2 SENSOR 2 (CMP22)
Color
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
RE429 (GY-OG) |
20 |
CTRL MOD. - POWERTRAIN # VARIABLE RELUCTANCE SENSOR (SIGRTN) |
|
|
2 |
VE707 (GN-VT) |
20 |
SENSOR - CAMSHAFT POSITION BANK 2 IN+EX / IN (CMP22) |
|

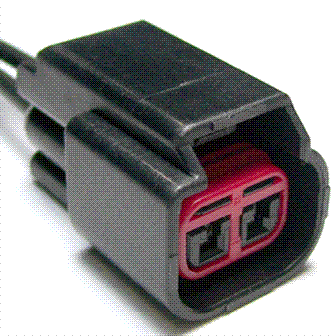

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-986 |
Service Part Number: 3U2Z-14S411-SLB Gauge: 14 Pin material: Tin Cavities: 2 Vehicle Uses Coil - Ignition Lamp - License Sensor - Cam Shaft Position Sensor - Crank Shaft Position |
