Connector End View (C323) - DRIVER SAFETY BELT RETRACTOR PRETENSIONER

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CR170 (GN)

22

CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE (#2) +

2

RR170 (BN-BU)

22

CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE (#2) -

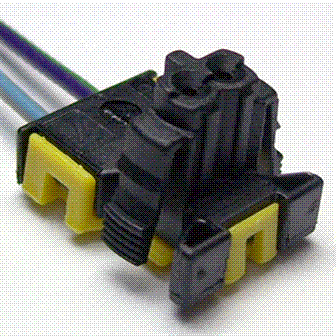

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1230

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BPA

Gauge:

20

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses

Airbag - Side Curtain

Squib - Airbag (Passenger)
