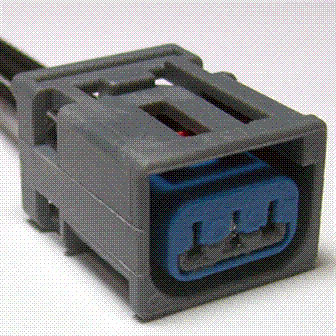

Connector End View (C180) - CAMSHAFT POSITION BANK 1 SENSOR 1 (CMP11)

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

LE458 (BU-WH)

20

CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF)

2

RE405 (GN-WH)

20

CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN)

3

VE706 (BN-BU)

20

SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP11)

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1205

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-KMB

Gauge:

16

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses

Sensor - Cam Shaft Position

Sensor - Delta Pressure Feedback EGR

Sensor - Fuel Tank Pressure Transducer
