Parking Brake Switch: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.

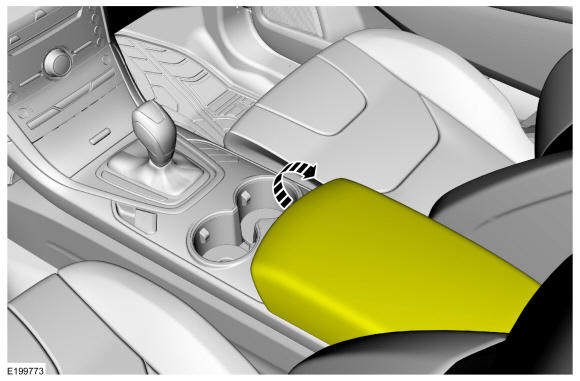

Open the floor console stowage bin lid.
 Courtesy of FORD MOTOR COMPANY
|
- 2.

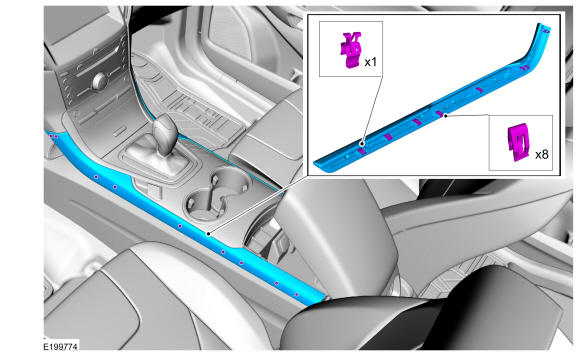

On both sides. Detach the clips and remove the floor console upper finish panels.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

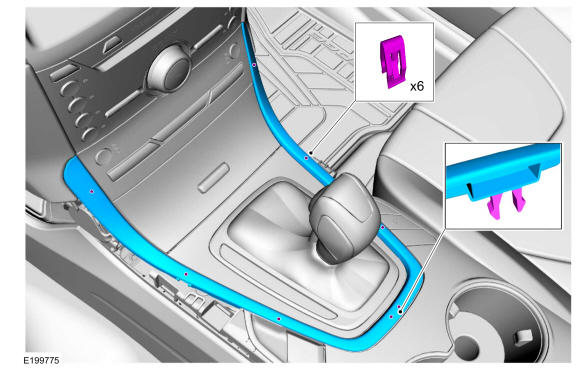

Detach the clips and remove the lower center stack finish panel.
 Courtesy of FORD MOTOR COMPANY
|
- 4.

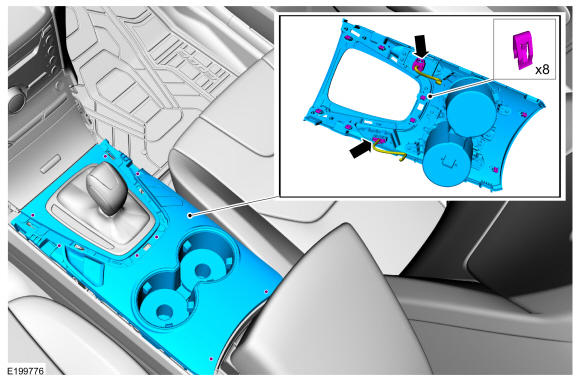

Detach the clips, disconnect the electrical connectors and remove the floor console upper trim panel.
 Courtesy of FORD MOTOR COMPANY
|
- 5.

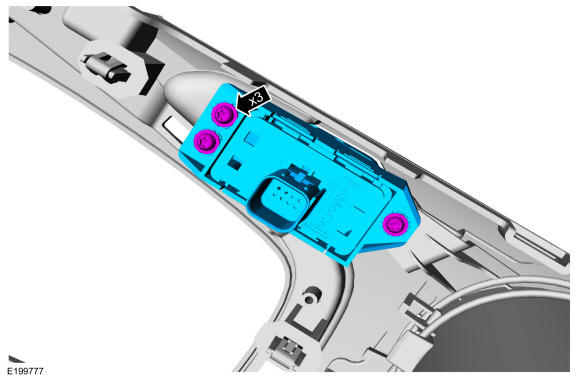

Remove the 3 screws and the EPB switch.
 Courtesy of FORD MOTOR COMPANY
|
