Parking Brake Actuator Motor: Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

  1. 2.

    Disconnect the electrical connector and detach the wiring retainer.

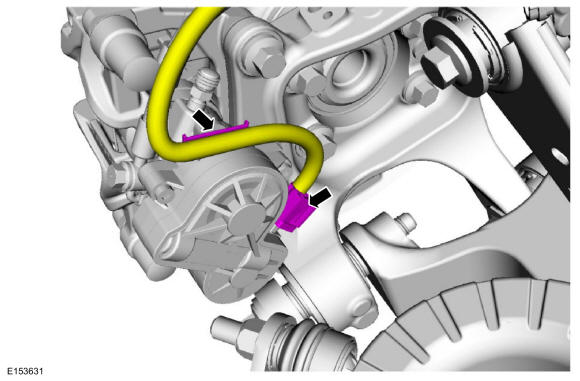

GFD18957Courtesy of FORD MOTOR COMPANY

  1. 3.

    NOTE: Once the actuator motor is removed, if there is evidence of brake fluid found in or around the parking brake actuator motor a new brake caliper and actuator motor assembly must be installed.

    Remove the bolts and using a twisting motion, remove the parking brake actuator motor.

    Torque: 71 lb.in (8 Nm)

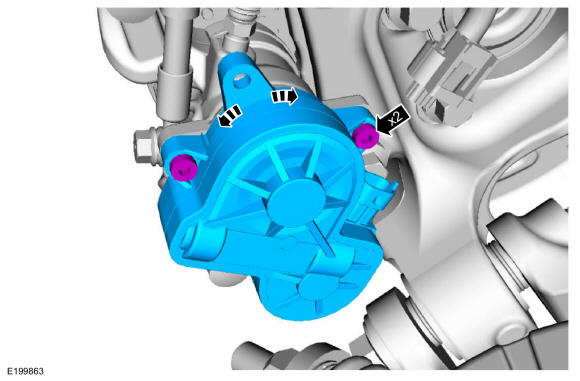

GFD18958Courtesy of FORD MOTOR COMPANY

  1. 4.

    Remove and discard the O-ring.

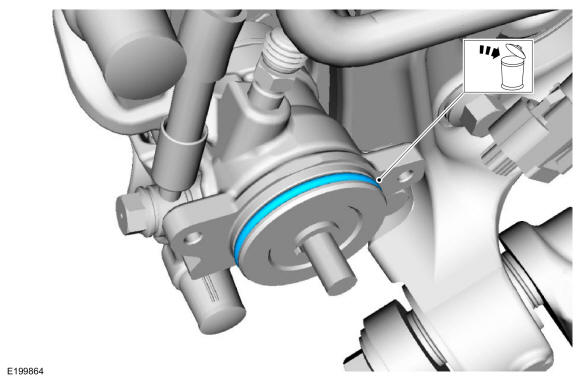

GFD18959Courtesy of FORD MOTOR COMPANY

  1. 5.

    Clean the brake caliper housing O-ring groove and apply the grease supplied with the parking kit.

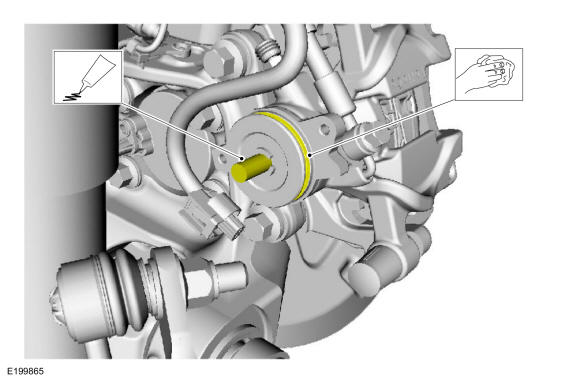

GFD18960Courtesy of FORD MOTOR COMPANY
