Roof Opening Panel Center Beam Trim: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. 1.

   Remove the roof opening panel glass. Refer to: Roof Opening Panel Glass .

1. 2.

   Pry at each clip area to release the roof opening panel center beam trim front retainers.

Courtesy of FORD MOTOR COMPANY

1. 3.

   Pull down on the roof opening panel center beam trim at the clip areas to release the roof opening panel center beam trim rear retainers.

Courtesy of FORD MOTOR COMPANY

1. 4.



   1. 1.

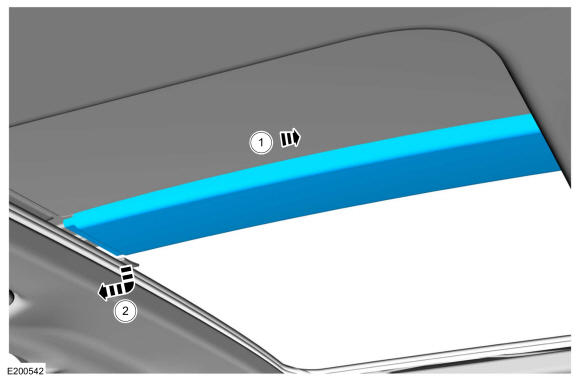

      Move the roof opening panel center beam trim to the RH side of the vehicle.

   1. 2.

      Pull down and outward on the LH side to remove the roof opening panel center beam trim.

Courtesy of FORD MOTOR COMPANY
