Roof Opening Panel Seals

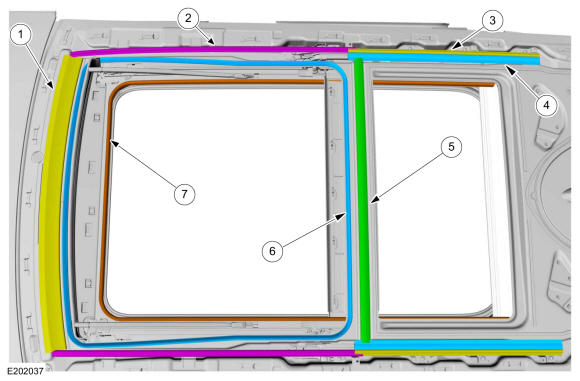

GFD18172Courtesy of FORD MOTOR COMPANY
Item Description
1 Front seal
2 Front side trim seal
3 Rear side trim outer seal
4 Rear side trim inner seal
5 Fixed glass front seal
6 Primary seal
7 Acoustic seal
