Sunroof - Roof Opening Panel
>>
Description And Operation
>>
Roof Opening Panel - Component Location
>>
Idler Track Assembly

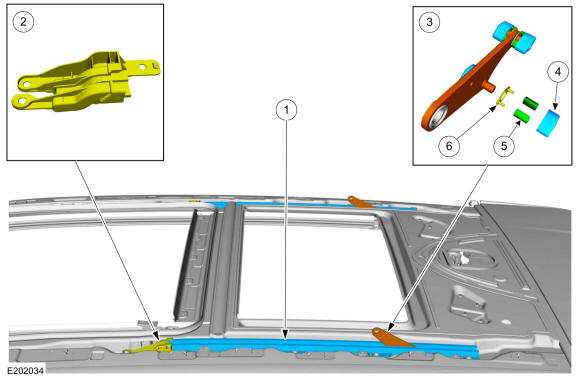

Idler Track Assembly
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Idler track assembly
2
Idler track front cam (PIA to idler track assembly)
3
Rear lifter arm (PIA to idler track assembly)
4
Slider (PIA to rear lifter arm)
5
Bushing (PIA to rear lifter arm)
6
Rear slider shoe (PIA to rear lifter arm)
