Engine Undershield - 2.0L EcoBoost (184kW/250PS) - MI4

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

  1. 1.

    NOTE: FWD shown in illustration, AWD similar.

    Remove the bolts, grommets and the engine undershield.

    Torque: 13 lb.in (1.5 Nm)

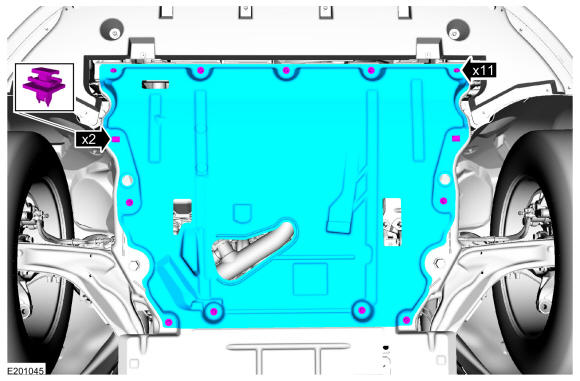

GFD17532Courtesy of FORD MOTOR COMPANY
