Rear Seat Cushion Cover: Removal
- 1.
Remove the rear seat cushion. Refer to: Rear Seat Cushion .
- 3.
Remove the cushion cover and foam from the seat frame.- 1.

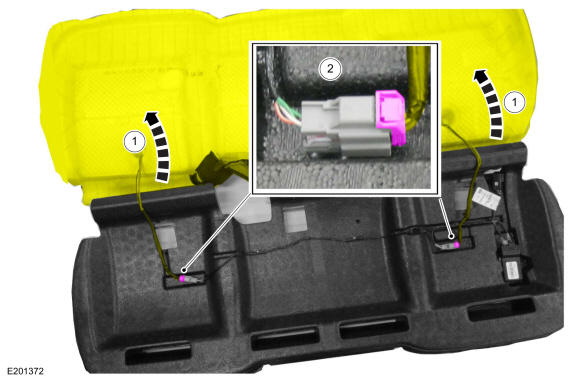

Lift the seat cushion cover and foam.
- 2.
If equipped. Disconnect the heated seat electrical connectors.
- 1.

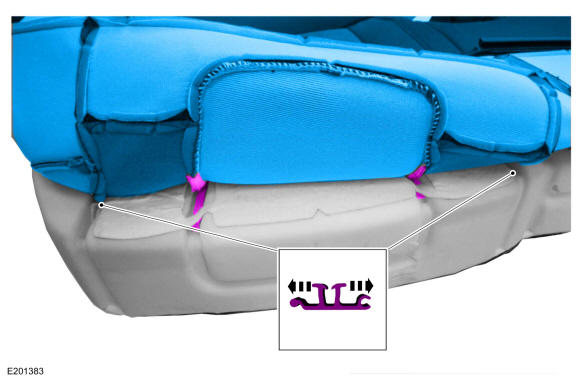

- 5.NOTE: Use care when separating the seat cushion trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat cushion foam pad.NOTE: Use care when separating the seat cushion trim cover from the hook-and-arrow strips or the hook-and-arrow strips may be torn from the seat cushion foam pad.

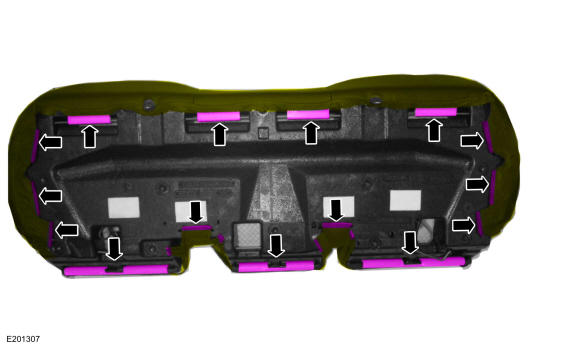

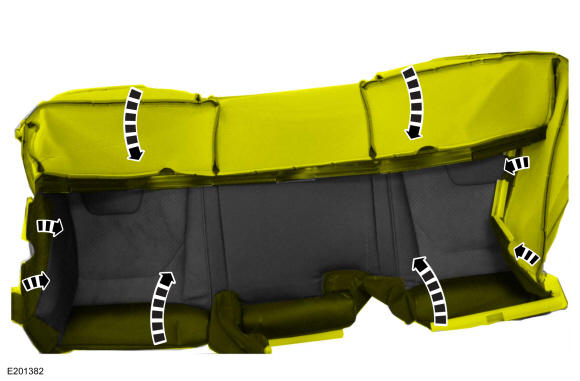

On both sides. Disengage the hook-and-loop and hook-and-arrow strips and remove the rear seat cushion trim cover.
