Instrument Panel Upper Section: Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    Remove the instrument panel. Refer to: Instrument Panel .

  1. 2.

    Remove the instrument panel speaker grille.

    Use the General Equipment: Interior Trim Remover

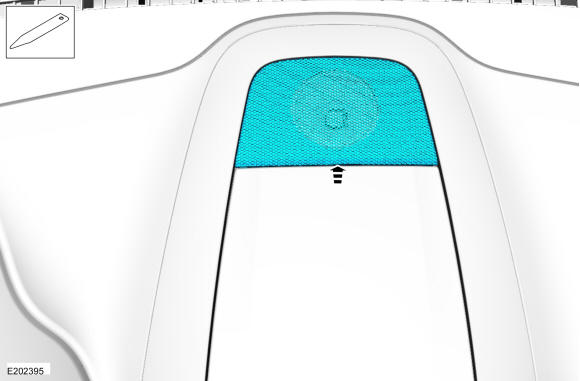

GFD17413Courtesy of FORD MOTOR COMPANY

  1. 3.

    Remove the bolts and the instrument panel speaker.
    • Disconnect the electrical connector.

      Torque: 22 lb.in (2.5 Nm)

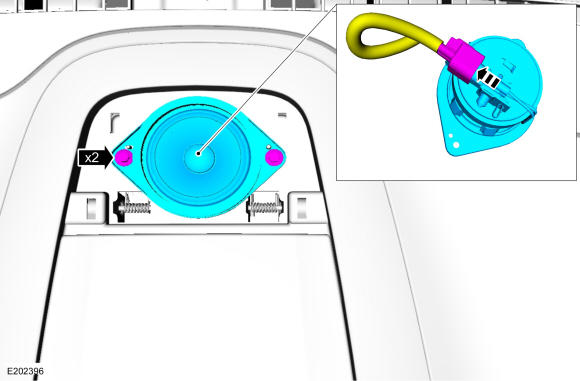

GFD17414Courtesy of FORD MOTOR COMPANY

  1. 4.

    NOTE: Touch screen FCIM shown in illustration, others similar.

    Remove the bolts and the FCIM.

    • Disconnect the electrical connectors.

      Torque: 22 lb.in (2.5 Nm)

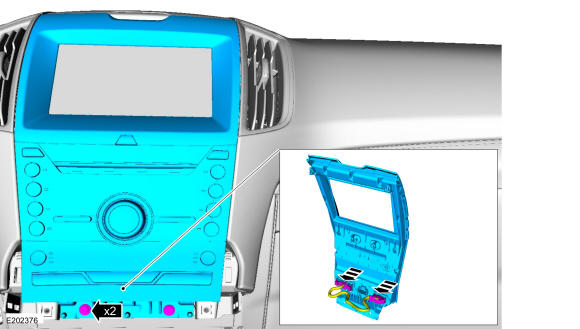

GFD17432Courtesy of FORD MOTOR COMPANY

  1. 5.

    NOTE: Touch screen FDIM shown in illustration, non-touch screen FCDIM similar.

    Remove the bolts and the FDIM.

    • Disconnect the electrical connectors.

      Torque: 22 lb.in (2.5 Nm)

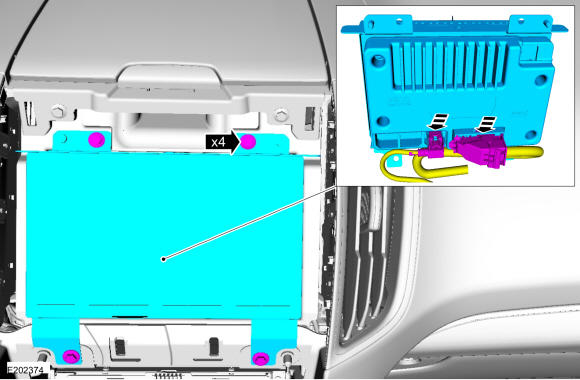

GFD17424Courtesy of FORD MOTOR COMPANY

  1. 6.

    Remove the bolts and the ACM.
    • Disconnect the electrical connectors.

      Torque: 22 lb.in (2.5 Nm)

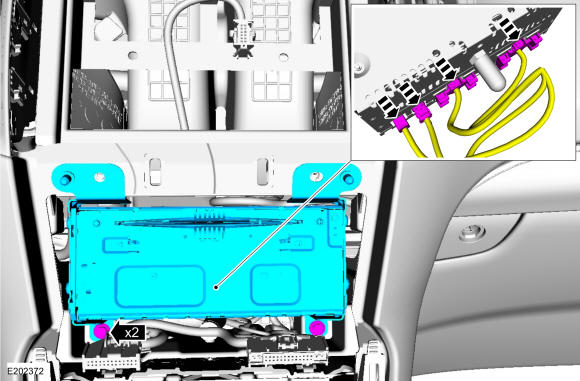

GFD17390Courtesy of FORD MOTOR COMPANY

  1. 7.

    Remove the bolts and the upper instrument panel storage bin.

    Torque: 22 lb.in (2.5 Nm)

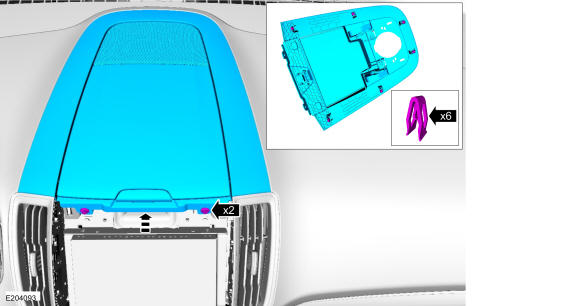

GFD18024Courtesy of FORD MOTOR COMPANY

  1. 8.

    Remove bolts, release the clips and remove the IPC bezel.

    Torque: 22 lb.in (2.5 Nm)

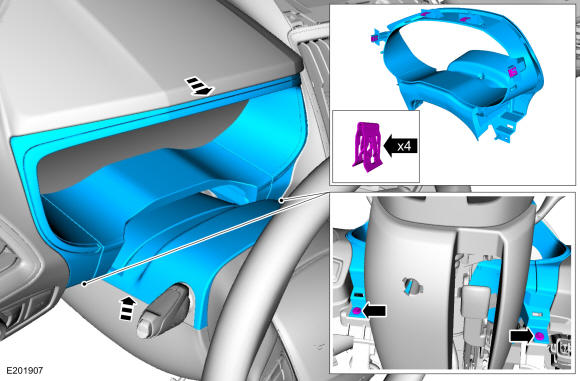

GFD18025Courtesy of FORD MOTOR COMPANY

  1. 9.

    Remove the bolts and the IPC.

    Torque: 22 lb.in (2.5 Nm)

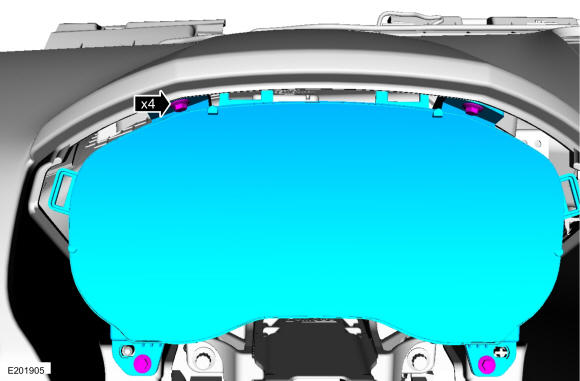

GFD18026Courtesy of FORD MOTOR COMPANY

  1. 10.

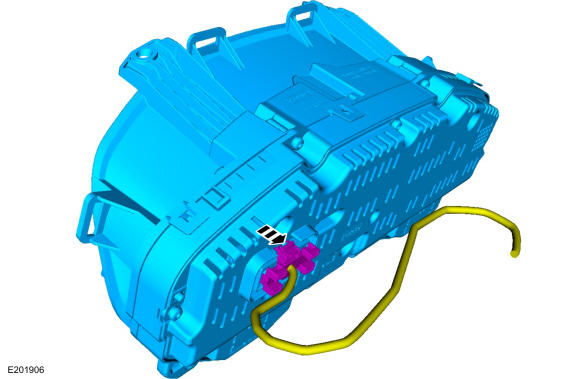

    Disconnect the electrical connector.
GFD18027Courtesy of FORD MOTOR COMPANY

  1. 11.

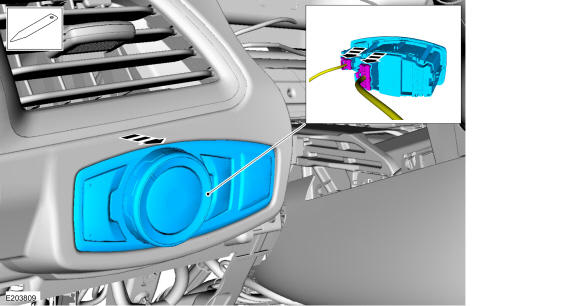

    Remove the headlamp switch.
    • Disconnect the electrical connector.
GFD18028Courtesy of FORD MOTOR COMPANY

  1. 12.

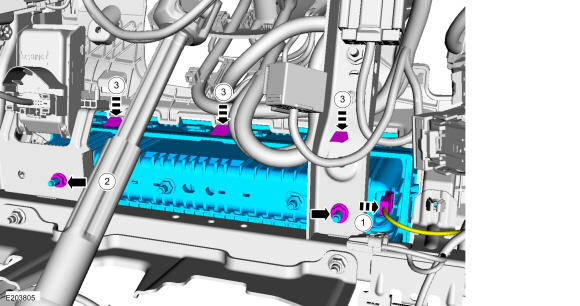

    • Disconnect the electrical connector.
    • Remove the bolts.

      Torque: 71 lb.in (8 Nm)

    • Through the opening, push the tabs down and detach the clips.
GFD18029Courtesy of FORD MOTOR COMPANY

  1. 13.

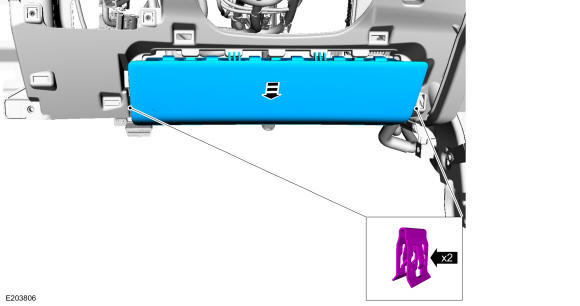

    Pivot the driver knee airbag down, separate the knee bolster clips and remove the driver knee airbag.
GFD18030Courtesy of FORD MOTOR COMPANY

  1. 14.

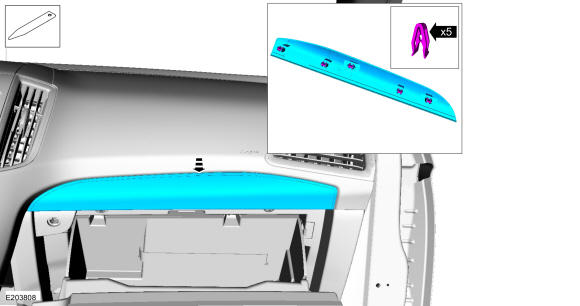

    Release the clips and remove the glove compartment finish panel.
GFD18031Courtesy of FORD MOTOR COMPANY

  1. 15.

    Open the glove compartment.

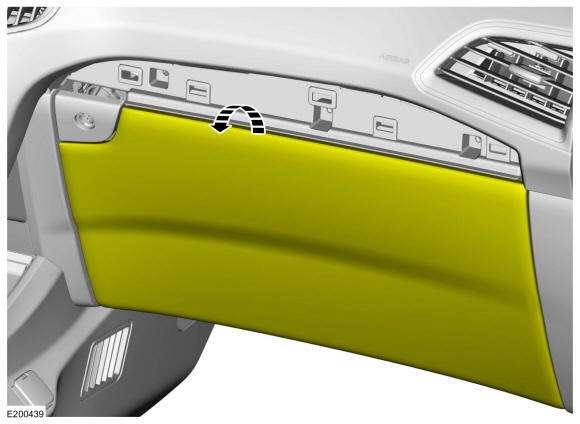

GFD18032Courtesy of FORD MOTOR COMPANY

  1. 16.

    Detach the glove compartment damper.

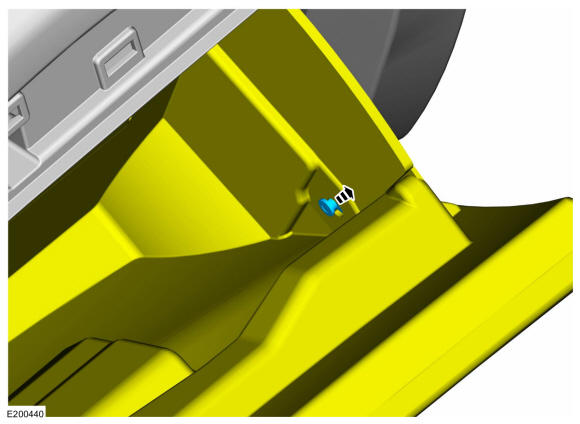

GFD18033Courtesy of FORD MOTOR COMPANY

  1. 17.

    Release the tabs and fully lower the glove compartment.

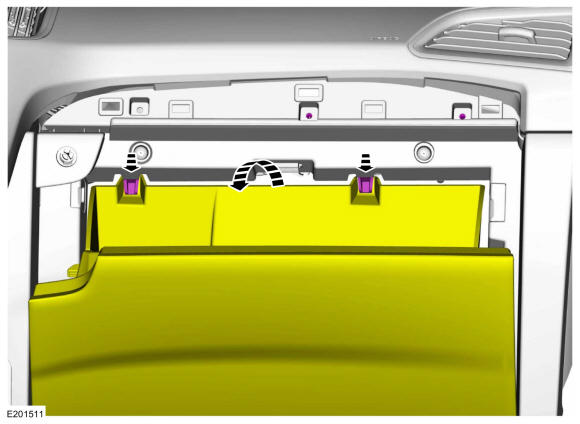

GFD18034Courtesy of FORD MOTOR COMPANY

  1. 18.

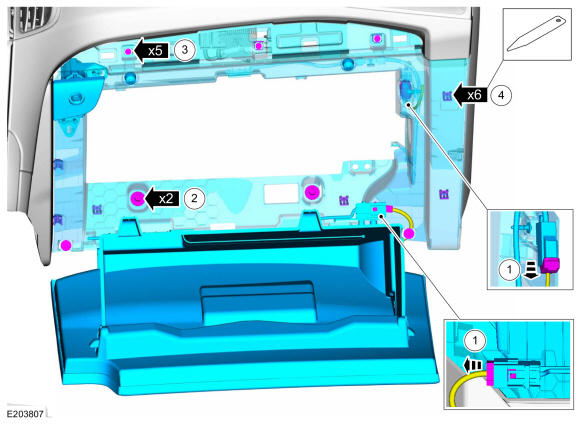

    1. 1.

      Disconnect the electrical connectors.

    1. 2.

      Remove the bolts.

      Torque: 35 lb.in (4 Nm)

    1. 3.

      Remove the screws.

      Torque: 22 lb.in (2.5 Nm)

    1. 4.

      Release the clips and remove the glove compartment.

      Use the General Equipment: Interior Trim Remover

GFD18035Courtesy of FORD MOTOR COMPANY

  1. 19.

    Remove the screws and the lower steering column shroud.

    Torque: 22 lb.in (2.5 Nm)

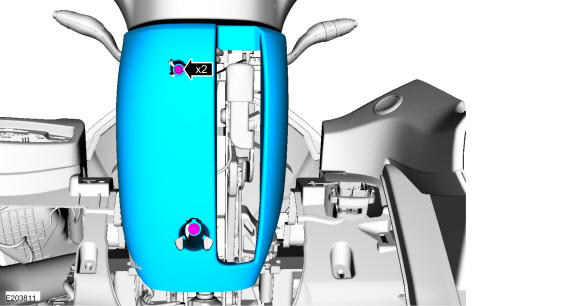

GFD18036Courtesy of FORD MOTOR COMPANY

  1. 20.

    Disconnect the electrical connectors.

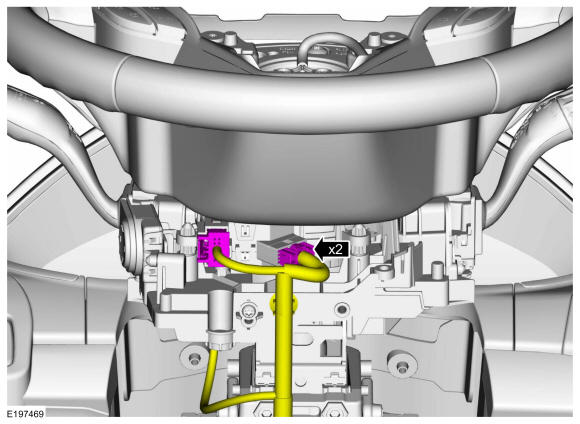

GFD18037Courtesy of FORD MOTOR COMPANY

  1. 21.

    NOTE: Vehicles with power adjustable steering column.

    Detach the retainer, disconnect the power tilt motor and power telescopic motor electrical connectors.

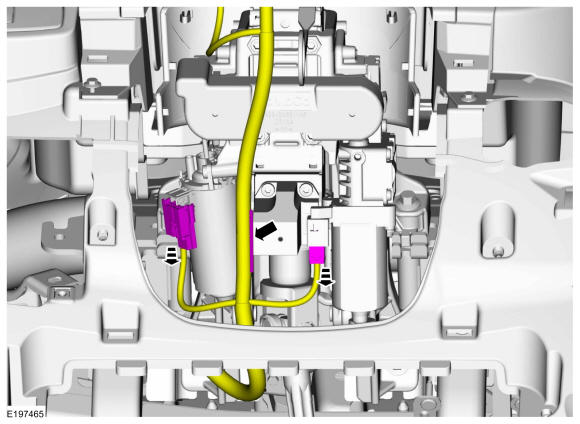

GFD18038Courtesy of FORD MOTOR COMPANY

  1. 22.

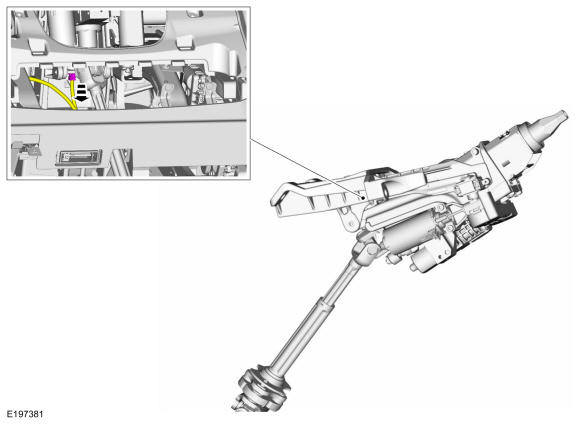

    Disconnect the deployable column electrical connector.
GFD18039Courtesy of FORD MOTOR COMPANY

  1. 23.

    NOTE: Do not reuse steering column bolts. This may result in fastener failure and steering column detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

    Remove and discard the bolts and remove the steering column.

    Torque: 18 lb.ft (25 Nm)

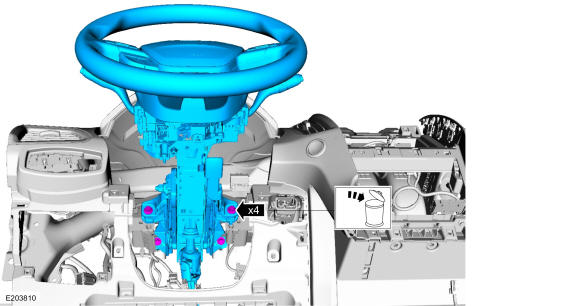

GFD18040Courtesy of FORD MOTOR COMPANY

  1. 24.

    Remove the engine start stop button.
    • Disconnect the electrical connector.

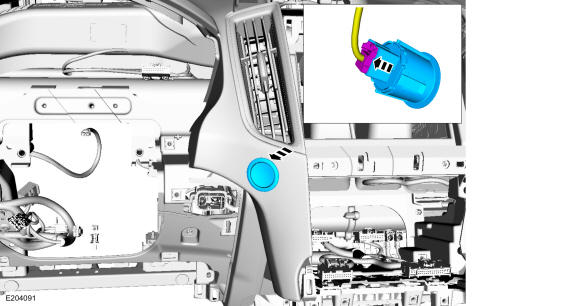

GFD18041Courtesy of FORD MOTOR COMPANY

  1. 25.

    Remove the 2 screws, release the clips and remove the lower instrument panel trim panel.

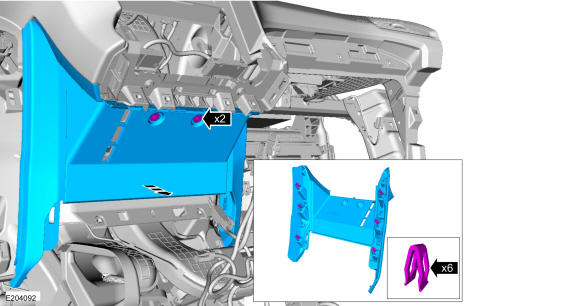

GFD18042Courtesy of FORD MOTOR COMPANY

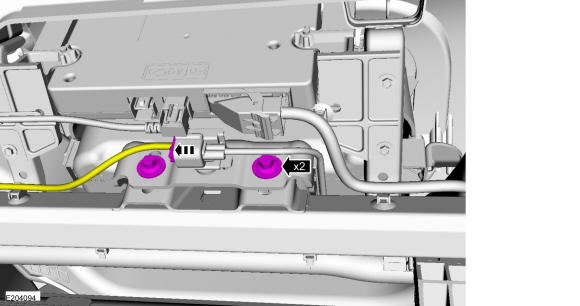

  1. 26.

    Remove passenger airbag to cross car beam bolts.
    • Disconnect the electrical connector.

      Torque: 80 lb.in (9 Nm)

GFD18043Courtesy of FORD MOTOR COMPANY

  1. 27.

    Remove the HVAC to instrument panel upper section bolts.
    • Detach the wiring harness from the instrument panel upper section and position aside.

      Torque: 35 lb.in (4 Nm)

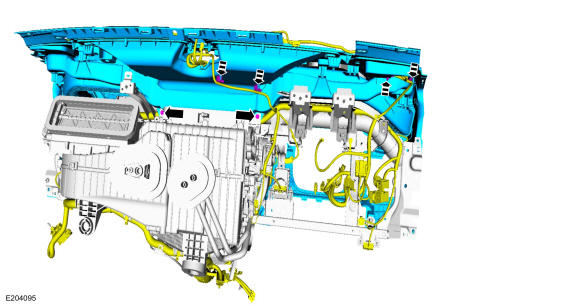

GFD18044Courtesy of FORD MOTOR COMPANY

  1. 28.

    NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel upper section or damage to the components may occur.

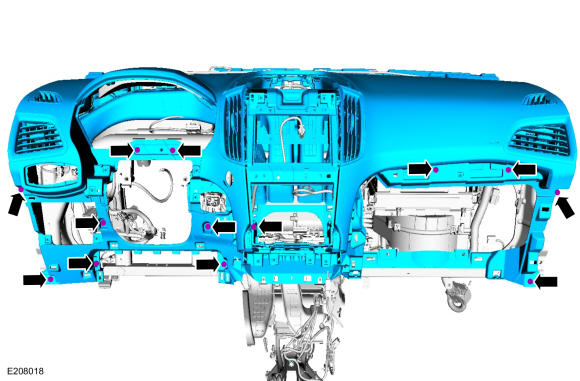

    Remove the instrument panel upper section to in-vehicle cross beam bolts and remove the instrument panel upper section.

    Torque: 22 lb.in (2.5 Nm)

GFD18045Courtesy of FORD MOTOR COMPANY
