Auxiliary Power Point: Removal

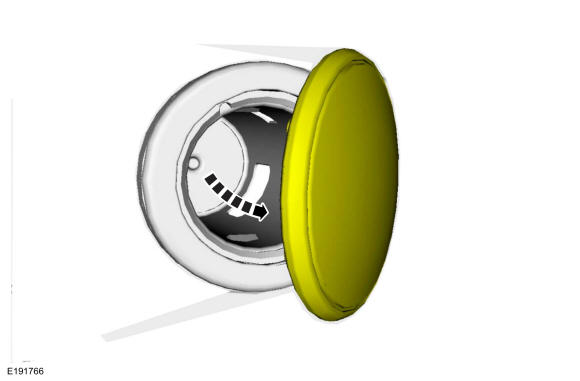

  1. 1.

    Open the power point cover
GFD17990Courtesy of FORD MOTOR COMPANY

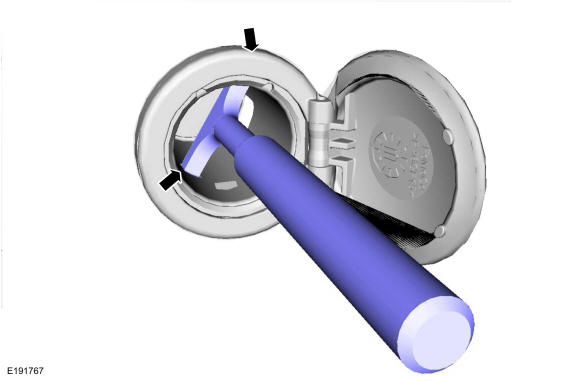

  1. 2.

    Position the power point extractor so that it engages in the adjacent slots in the power point socket.

    Use Special Service Tool: 501-194 Remover, Power Point.

GFD17991Courtesy of FORD MOTOR COMPANY

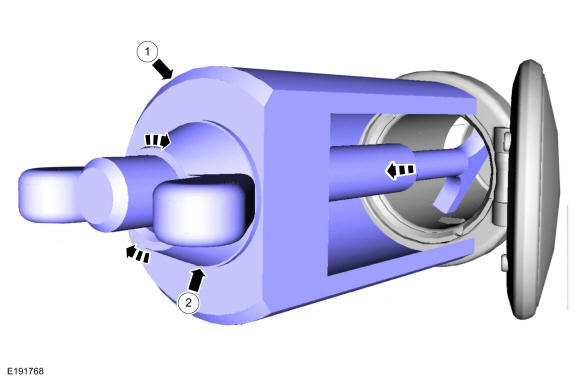

  1. 3.

    1. 1.

      Install the receiver cup

    1. 2.

      Install and tighten the wing nut.

      Use Special Service Tool: 501-194 Remover, Power Point.

GFD17992Courtesy of FORD MOTOR COMPANY

  1. 4.

    Tighten the wing nut to pull the power point socket out of the retainer.
GFD17993Courtesy of FORD MOTOR COMPANY

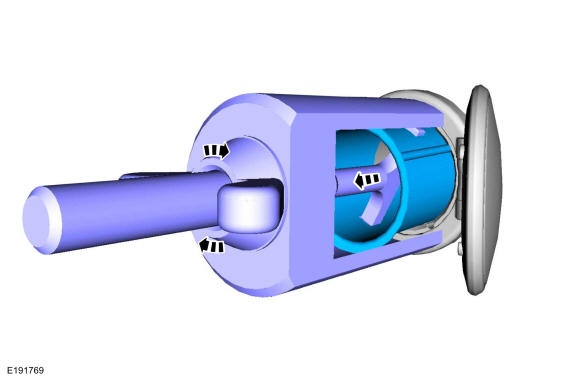

  1. 5.

    Disconnect the electrical connector.
GFD17994Courtesy of FORD MOTOR COMPANY
