Rear Parking Aid Camera: Removal

  1. 1.

    Remove the reversing lamp assembly. Refer to: Reversing Lamp .

  1. 2.

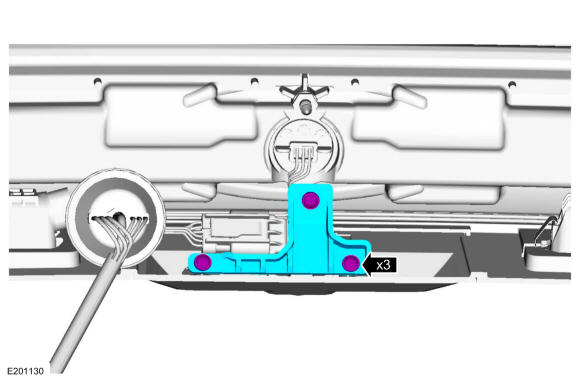

    Remove the screws and the rear view camera bracket.
GFD17467Courtesy of FORD MOTOR COMPANY

  1. 3.

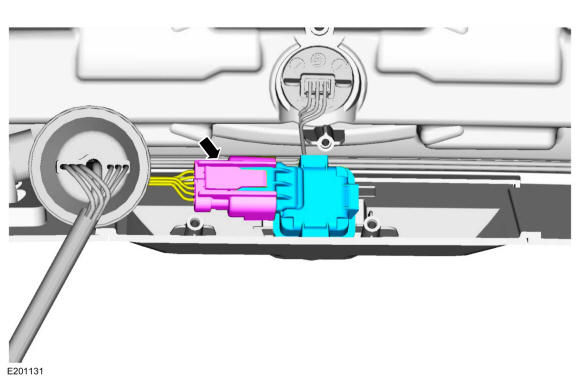

    Disconnect and remove the rear view camera.
GFD17468Courtesy of FORD MOTOR COMPANY
