Drivers Assistance Systems - ADAS
>>
Parking Aid System - Vehicles With Parking Aid Camera
>>
Description And Operation
>>

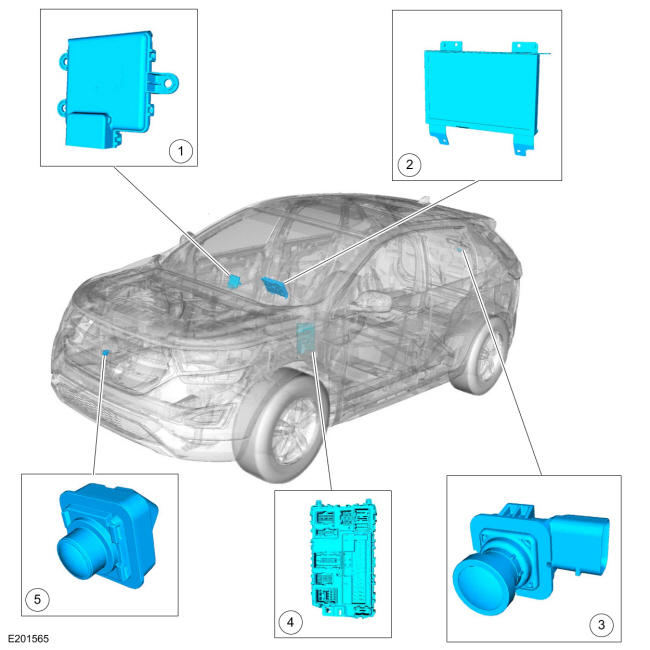

Parking Aid - Component Location
>>
Component Location - Parking Aid Camera
Component Location - Parking Aid Camera
Courtesy of FORD MOTOR COMPANY
Item
Description
1
IPMB (front and rear parking aid camera system)
2
Centerstack infotainment display (FDIM shown FCDIM similar)
3
Rear parking aid camera
4
BCM (rear only parking aid camera system)
5
Front parking aid camera
