Front Parking Aid Camera: Removal

  1. 1.

    Remove the front bumper cover. Refer to: Front Bumper Cover .

  1. 2.

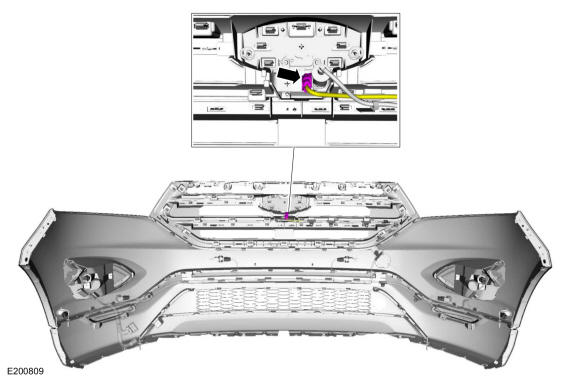

    Disconnect the front parking aid camera electrical connector.
GFD18307Courtesy of FORD MOTOR COMPANY

  1. 3.

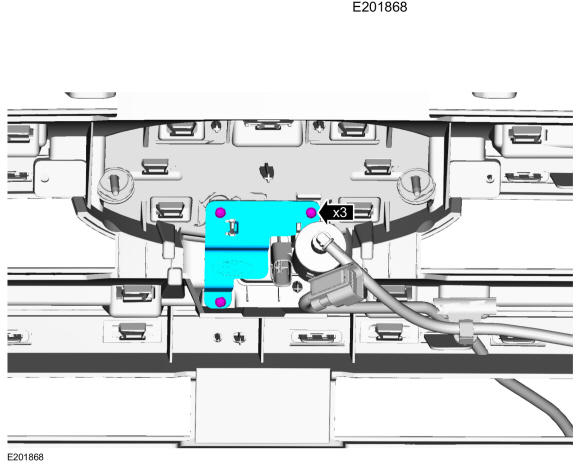

    Remove the screws and the front parking aid camera bracket.
GFD19303Courtesy of FORD MOTOR COMPANY

  1. 4.

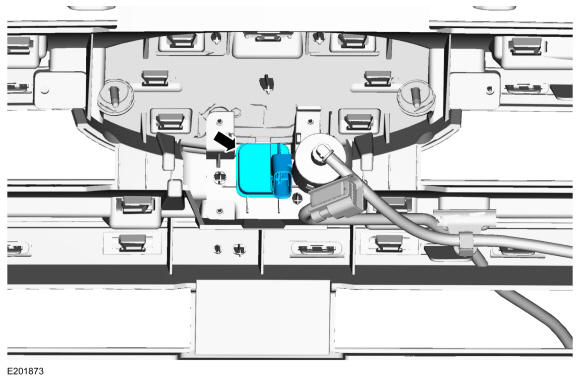

    Remove the front parking aid camera.
GFD19304Courtesy of FORD MOTOR COMPANY
