Brake Vacuum Pump
>>
Removal
Brake Vacuum Pump: Removal
NOTE:
Removal steps in this procedure may contain installation details.
1.
Refer to:
Cooling Fan Motor and Shroud
.

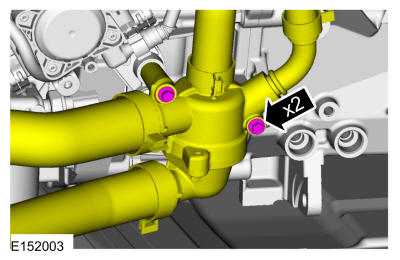

2.
Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

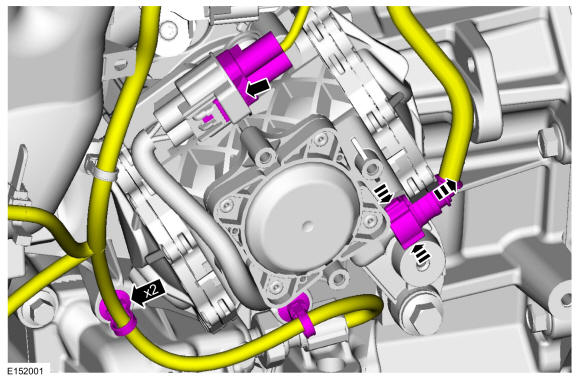

3.
Courtesy of FORD MOTOR COMPANY

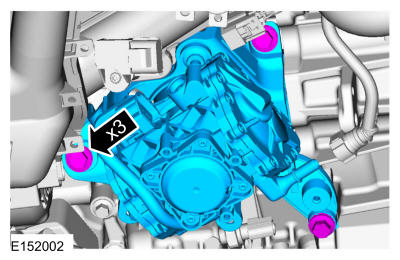

4.
Torque: 35 lb.ft (48 Nm)
Courtesy of FORD MOTOR COMPANY

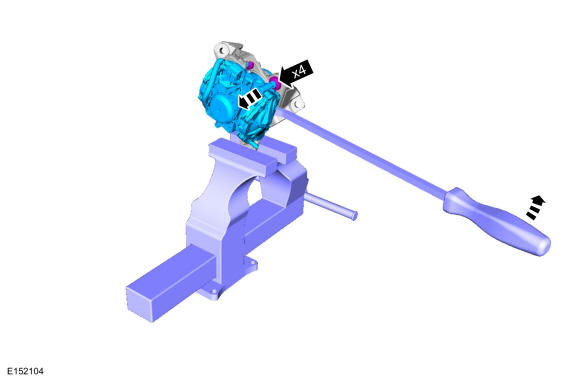

5.
Use the General Equipment: Vise
Courtesy of FORD MOTOR COMPANY
