Instrument Cluster

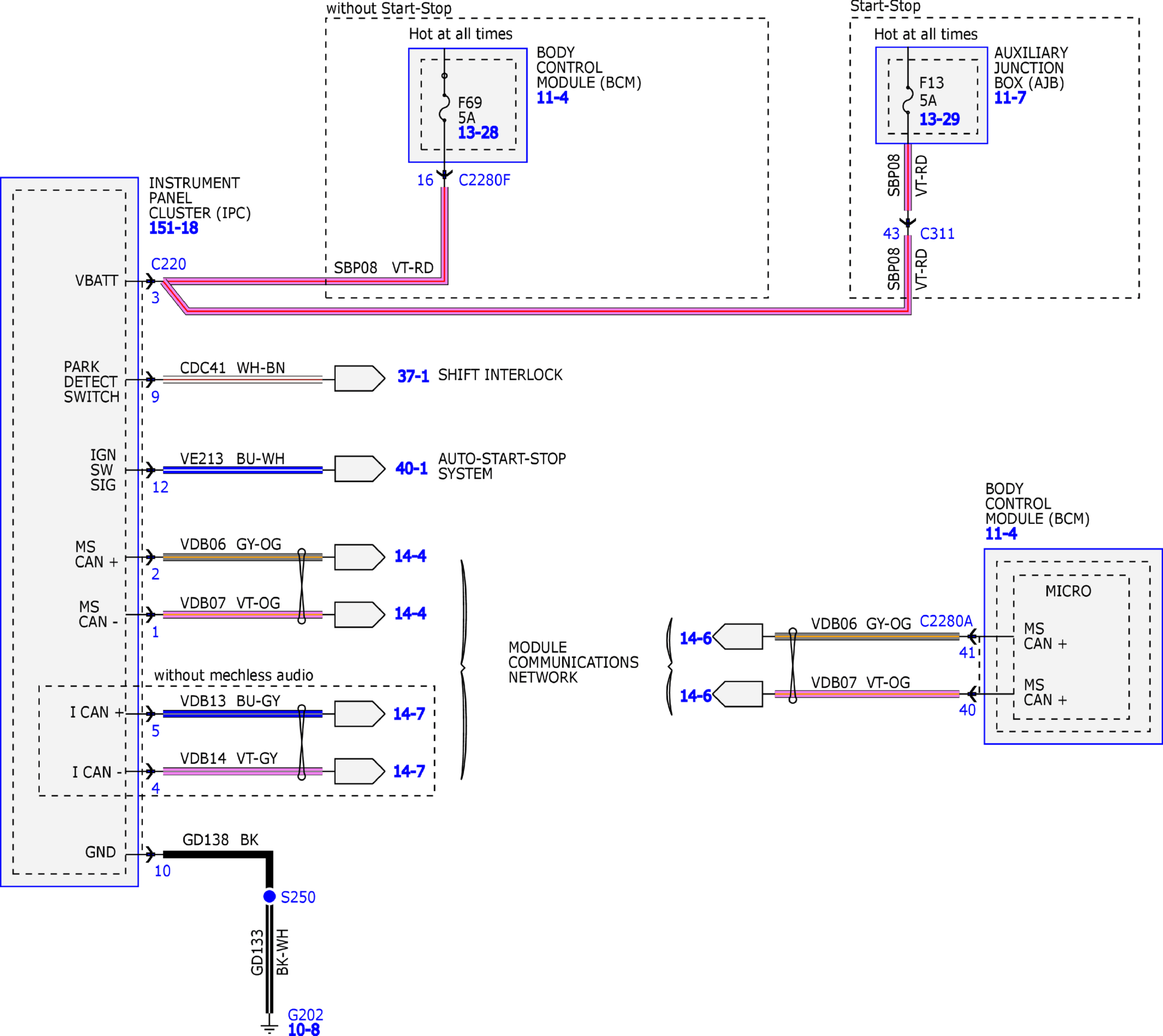

Fig 1: Instrument Cluster System Wiring Diagrams (1 Of 6)
GFDW17101Courtesy of FORD MOTOR COMPANY

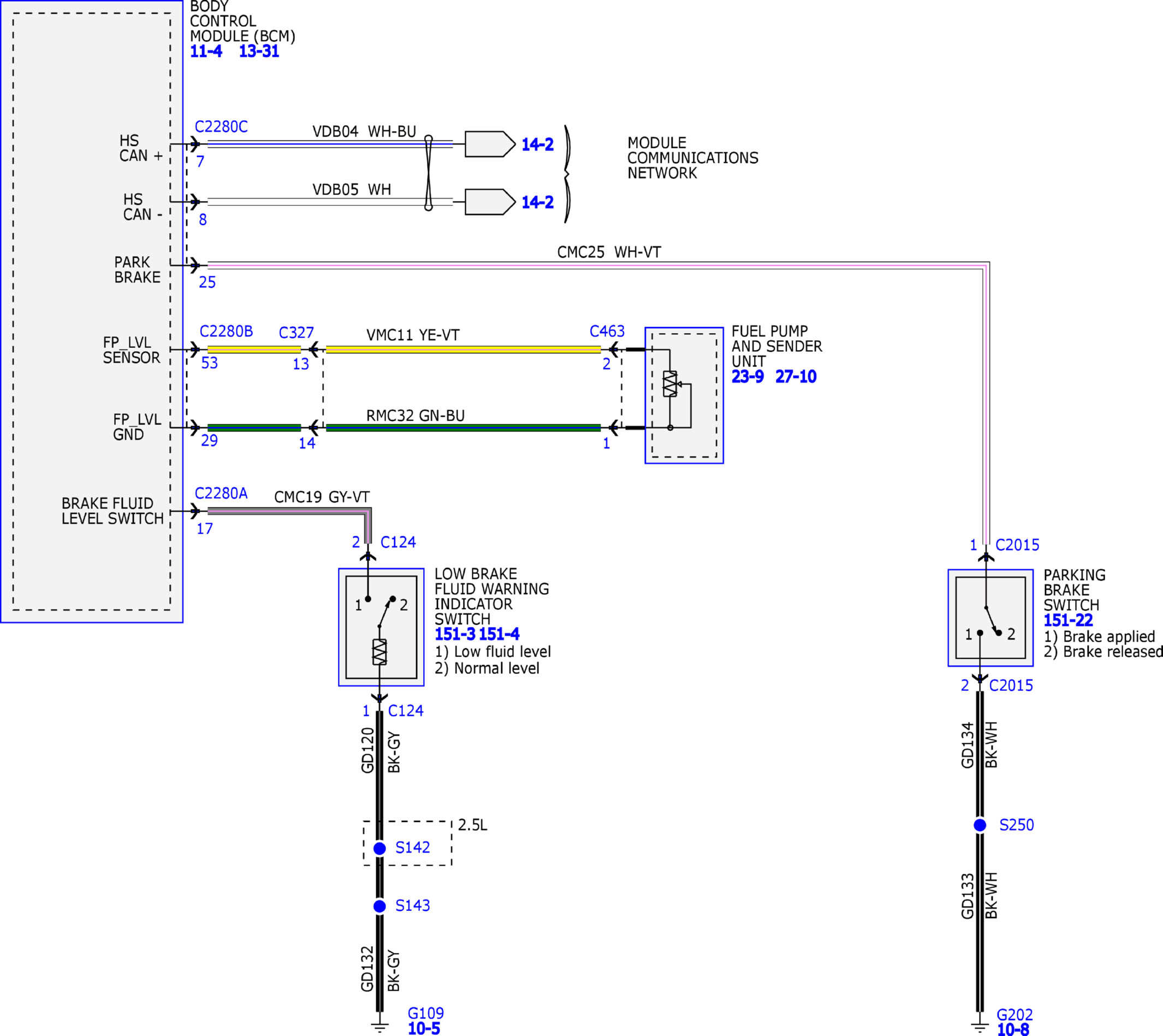

Fig 2: Instrument Cluster System Wiring Diagrams (2 Of 6)
GFDW17102Courtesy of FORD MOTOR COMPANY

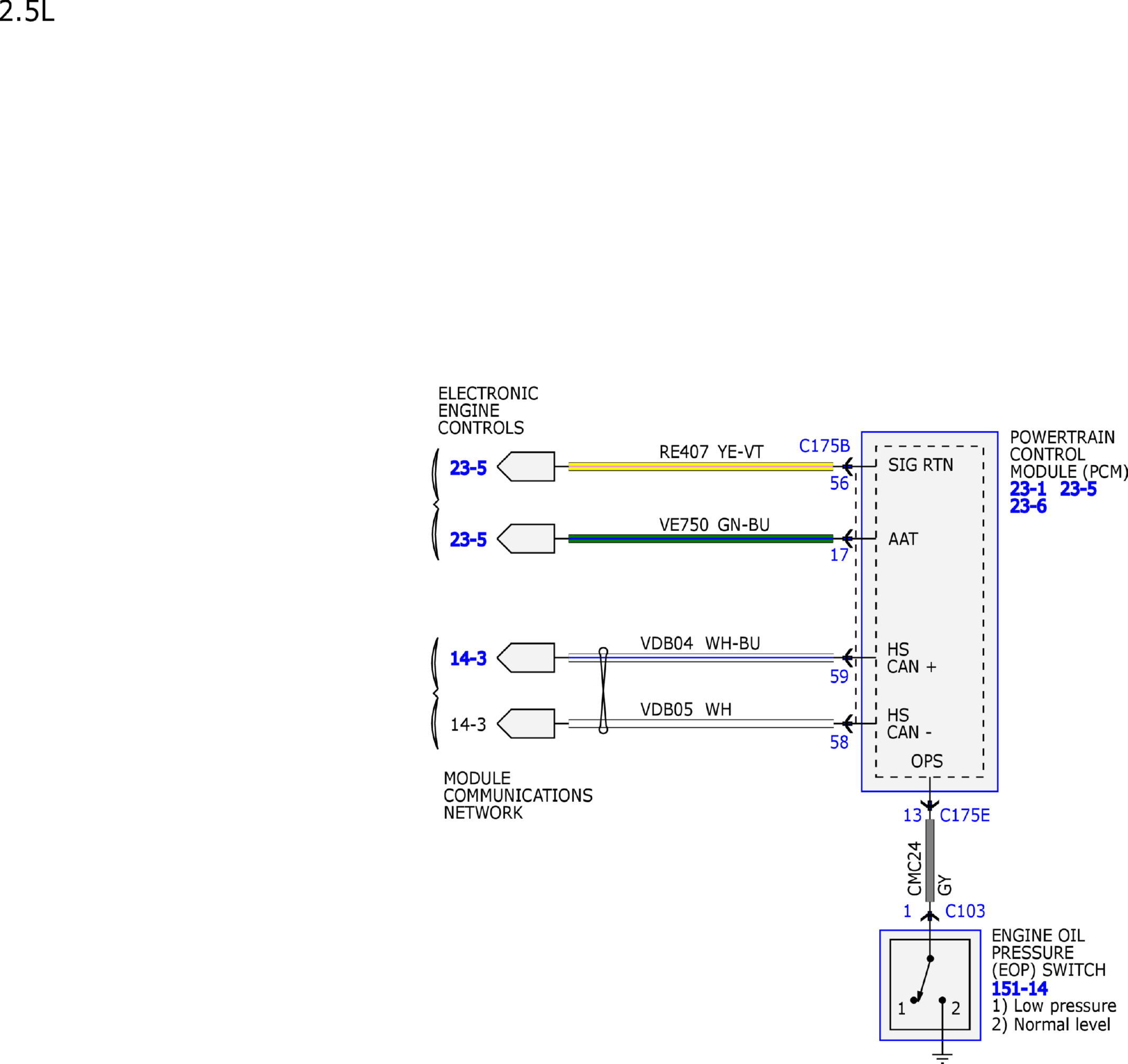

Fig 3: Instrument Cluster System Wiring Diagrams (3 Of 6)
GFDW17103Courtesy of FORD MOTOR COMPANY

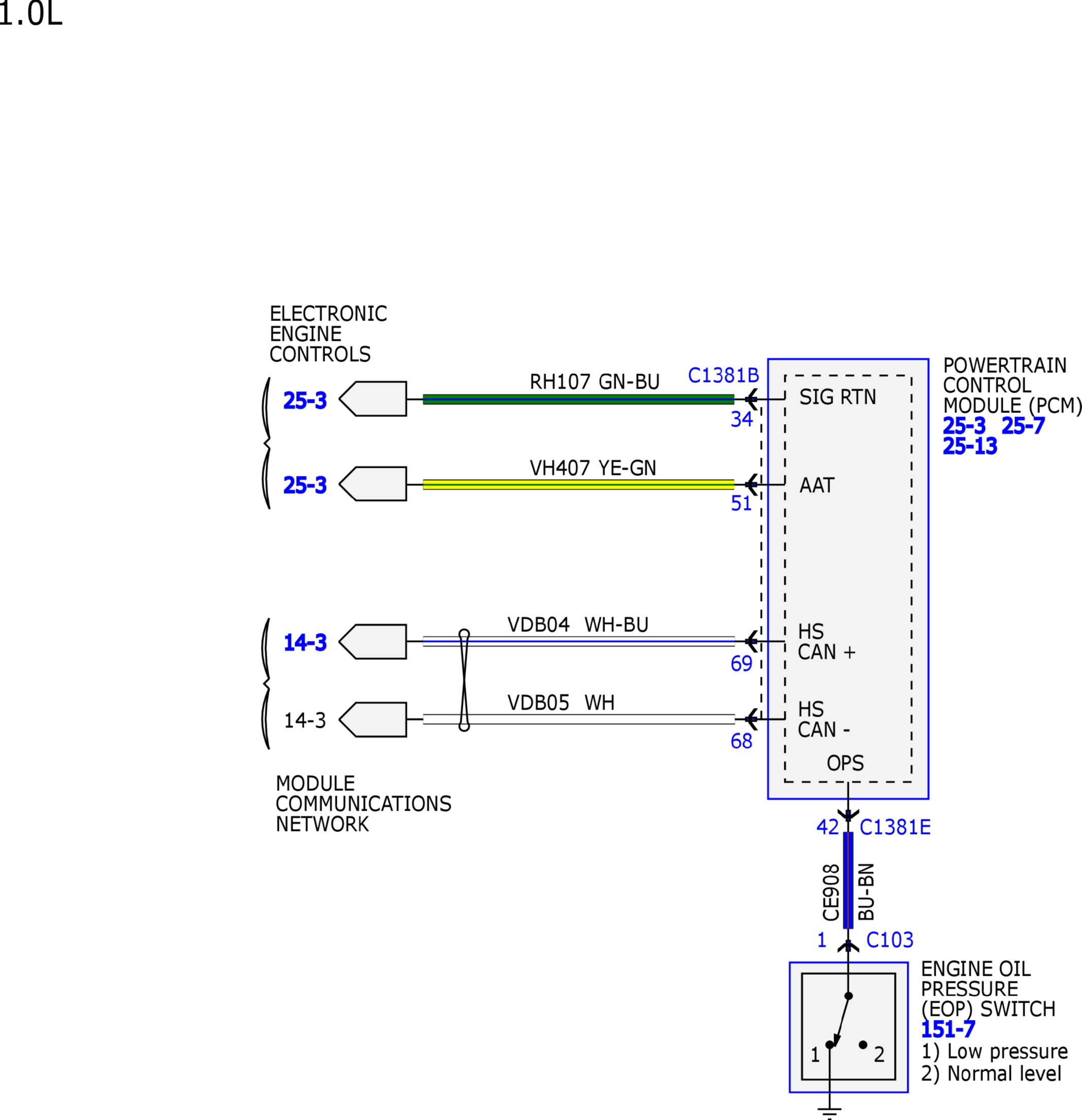

Fig 4: Instrument Cluster System Wiring Diagrams (4 Of 6)
GFDW17104Courtesy of FORD MOTOR COMPANY
Fig 5: Instrument Cluster System Wiring Diagrams (5 Of 6)
GFDW17105Courtesy of FORD MOTOR COMPANY

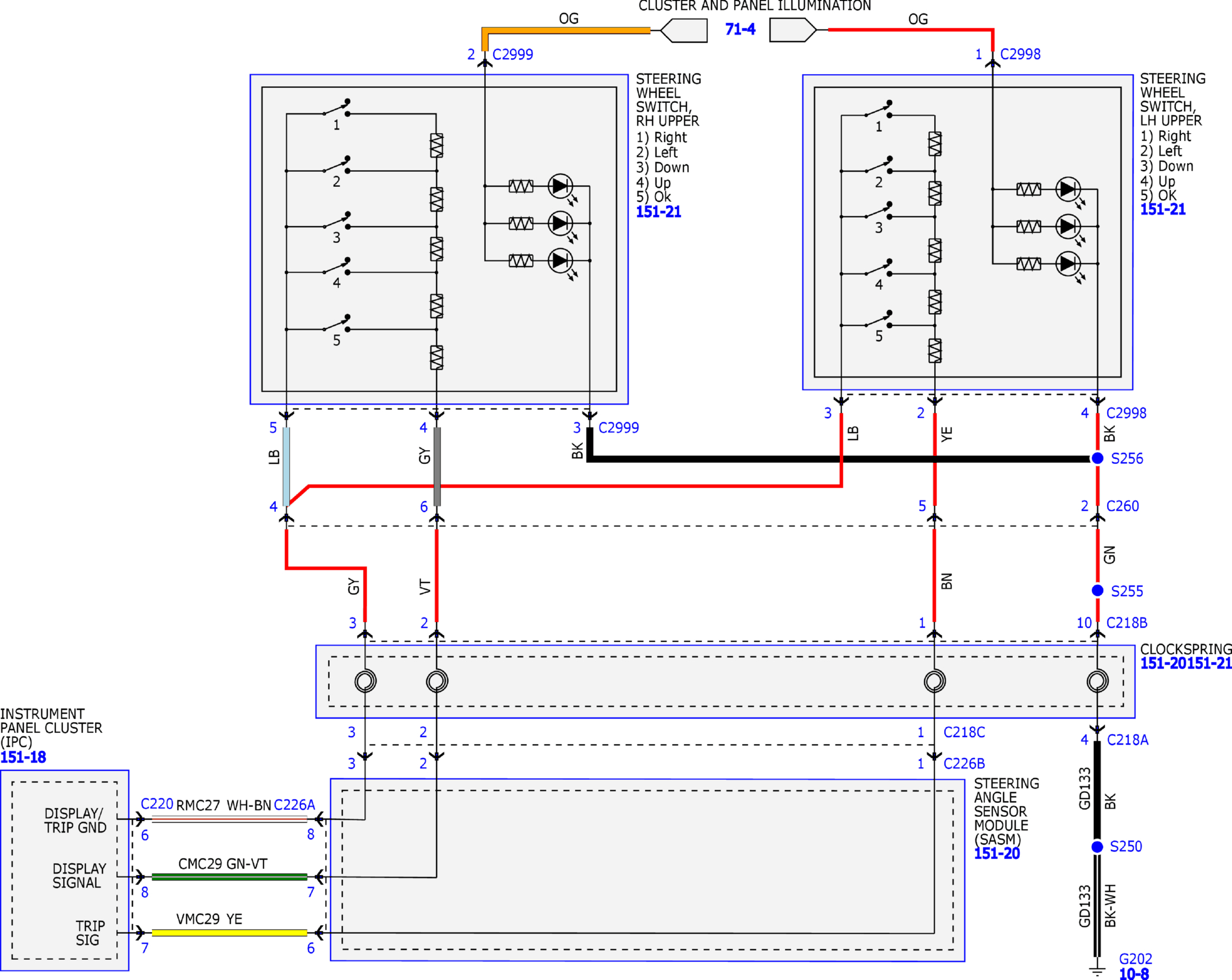

Fig 6: Instrument Cluster System Wiring Diagrams (6 Of 6)
GFDW17106Courtesy of FORD MOTOR COMPANY
