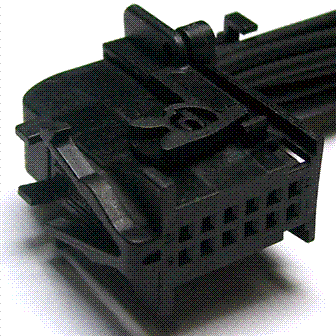

Connector End View (C220) - INSTRUMENT PANEL CLUSTER (IPC)
Connector: C220
Description
INSTRUMENT PANEL CLUSTER (IPC)
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
|

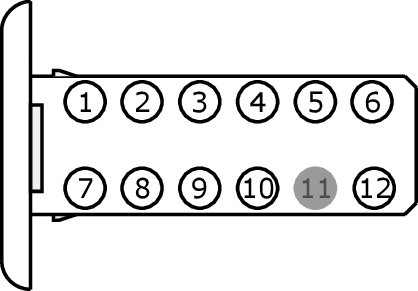

Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
VDB07 (VT-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
|
|
2 |
VDB06 (GY-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
|
|
3 |
SBP08 (VT-RD) |
22 |
FUSE - 8 OR CIRCUIT BREAKER |
|
|
4 |
VDB14 (VT-GY) |
22 |
CTRL MOD. - MULTIMEDIA CAN BUS LOW |
without mechless audio |
|
5 |
VDB13 (BU-GY) |
22 |
CTRL MOD. - MULTIMEDIA CAN BUS HIGH |
without mechless audio |
|
6 |
RMC27 (WH-BN) |
22 |
CTRL MOD. - INSTRUMENT CLUSTER # SWITCH INFORMATION / MESSAGE CENTER SELECT |
|
|
7 |
VMC29 (YE) |
22 |
SWITCH - INFORMATION / MESSAGE CENTER SELECT |
|
|
8 |
CMC29 (GN-VT) |
22 |
SWITCH - INFORMATION / MESSAGE CENTER SELECT + |
|
|
9 |
CDC41 (WH-BN) |
22 |
SWITCH - SOLENOID KEY LOCK (INHIBIT REMOVAL) |
|
|
10 |
GD138 (BK) |
22 |
GROUND - COWL SIDE/PILLAR A RIGHT (OBSOLETE) |
|
|
11 |
* |
* |
Not Used |
|
|
12 |
VE213 (BU-WH) |
20 |
IGN SW SIG |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1278 |
Service Part Number: CU2Z-14S411-ABA Gauge: 18 Pin material: Tin (greased) Cavities: 12 Vehicle Uses Message Center Module - Driver Information Module - Front Interface |
