Battery Disconnect and Connect

Depower

NOTE: If it is only necessary to interrupt power to the vehicle electrical system, disconnect the negative battery cable body terminal only.

1.

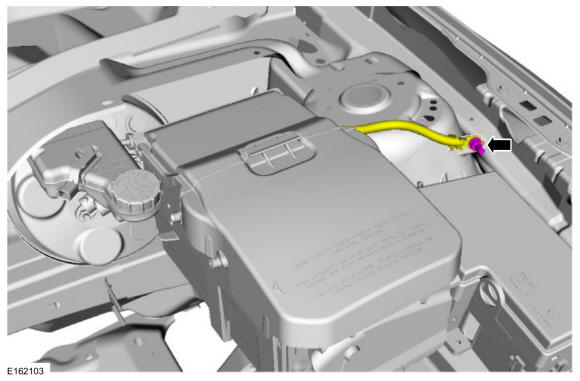

Remove the bolt and position the negative battery cable.
Torque

: 16 lb.ft (22 Nm)

Courtesy of FORD MOTOR COMPANY

2.

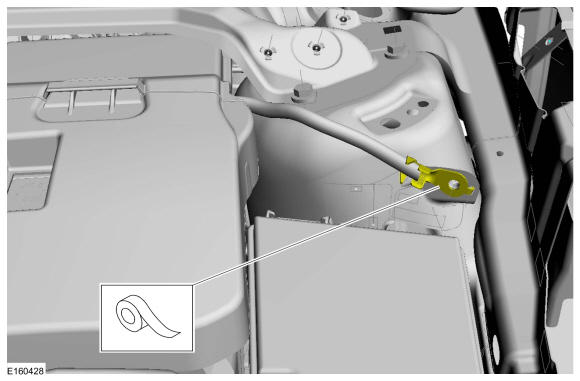

Using electrical tape, cover the negative battery cable terminal.

Courtesy of FORD MOTOR COMPANY

Disconnect

1.

NOTE: The cowl panel is removed for clarity.

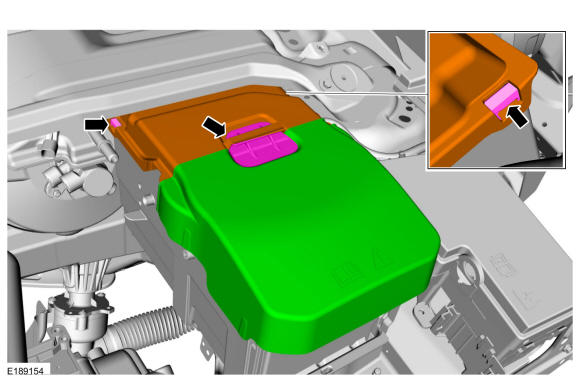

Remove the battery covers.

Courtesy of FORD MOTOR COMPANY

NOTE: Positioning a nonconductive cover over the positive battery terminal before loosening the negative battery cable clamp will prevent damage from a short to the positive terminal.

2.

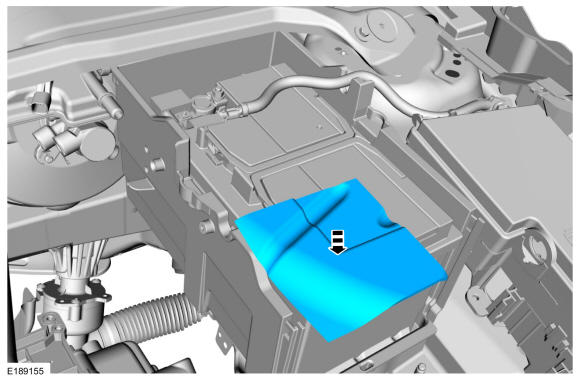

Using a nonconductive cover, position the cover over the positive battery terminal.

Courtesy of FORD MOTOR COMPANY

3.

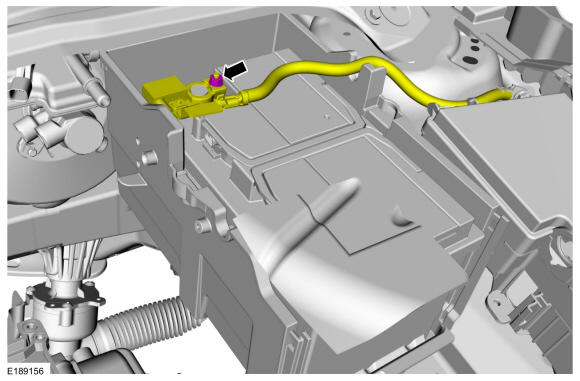

Loosen the nut and remove the negative battery cable from the battery terminal post.
Torque

: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

4.

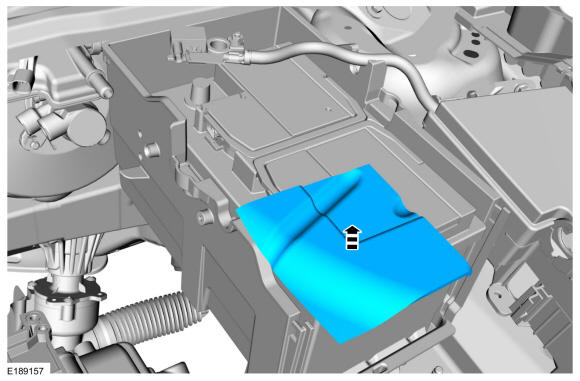

Remove the cover.

Courtesy of FORD MOTOR COMPANY

5.

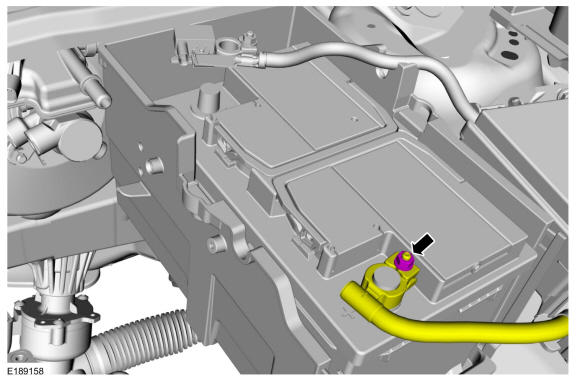

Loosen the nut and remove the positive battery cable from the battery terminal post.
Torque

: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

Connect

1.

To connect, reverse the depower or disconnect procedure.

2.

Vehicles with: One-Touch Up and Down Front Windows. Refer to: POWER DOOR WINDOW INITIALIZATION .
