Parking Lamps, Rear Lamps And License Lamps

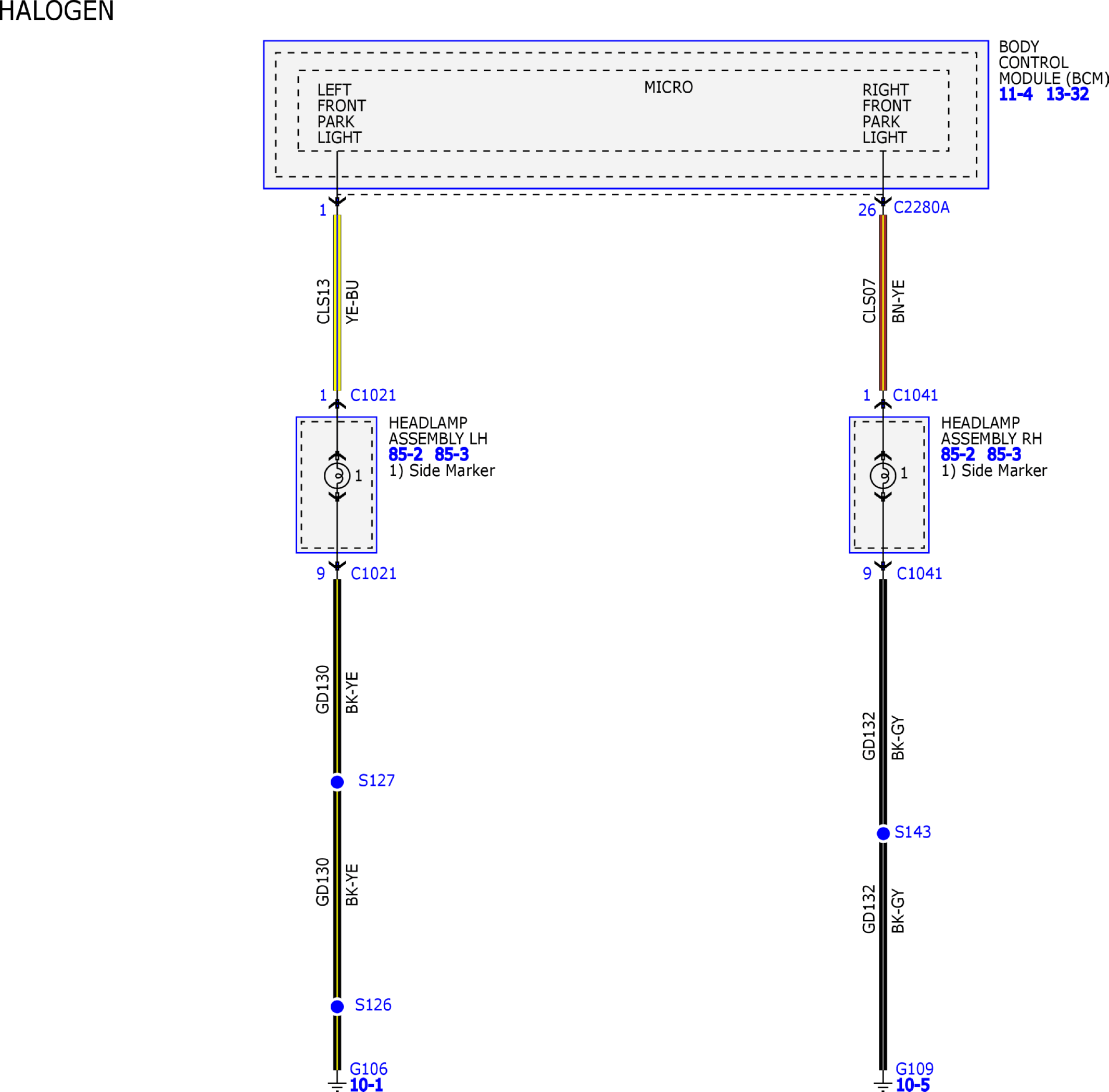

Fig 1: Parking Lamps, Rear Lamps And License Lamps System Wiring Diagrams (1 Of 2)

Courtesy of FORD MOTOR COMPANY

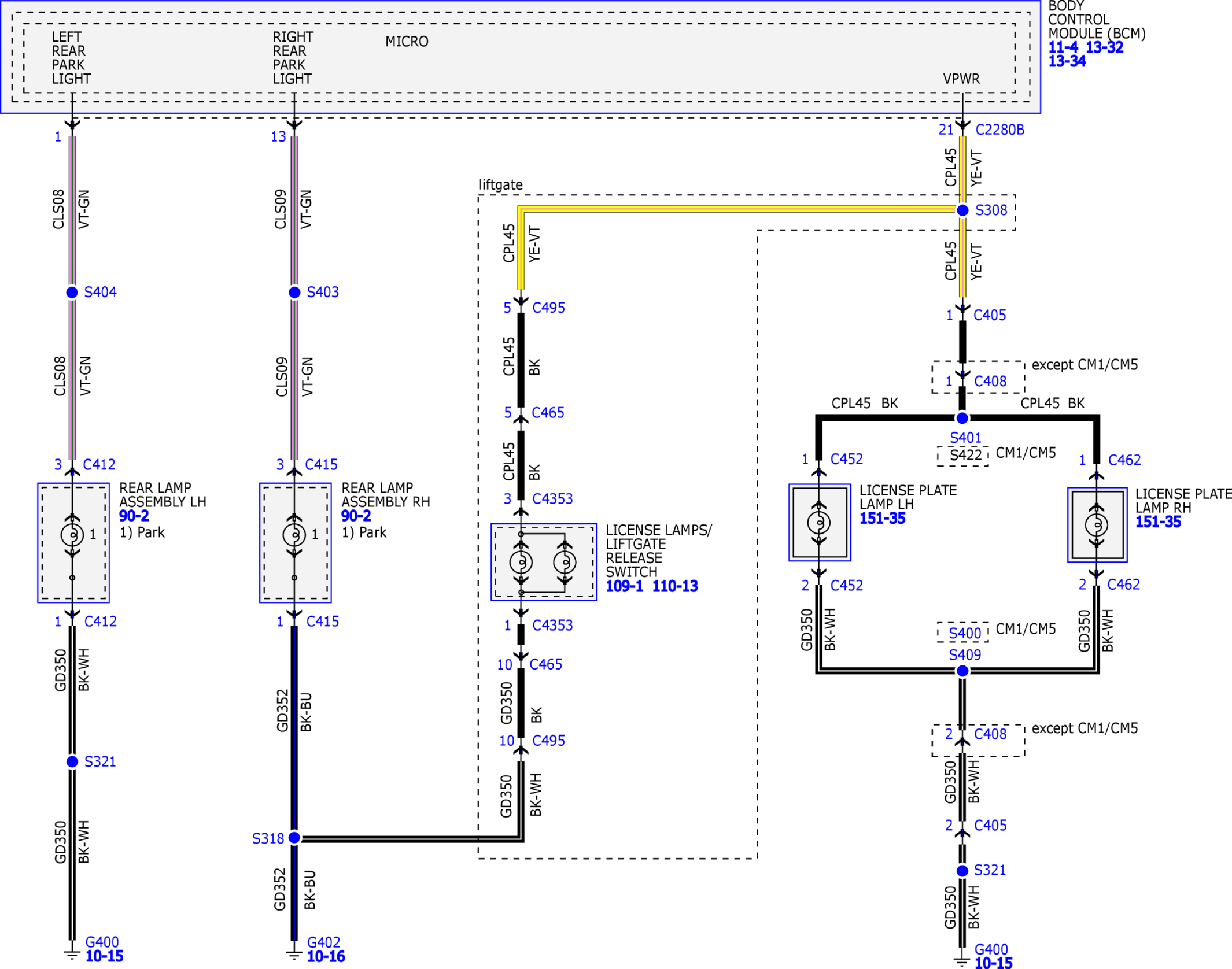

Fig 2: Parking Lamps, Rear Lamps And License Lamps System Wiring Diagrams (2 Of 2)

Courtesy of FORD MOTOR COMPANY
