Connector End View (C3238) - PASSENGER SAFETY BELT TENSION SENSOR (BTS)
Connector: C3238
Description
PASSENGER SAFETY BELT TENSION SENSOR (BTS)
Color
BK
Harness
14014
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
GD345 (BK-VT) |
20 |
GROUND - PILLAR B RIGHT |
|
|
2 |
VR210 (BU-BN) |
20 |
SENSOR - SEAT BELT TENSION FRONT PASSENGER OUTBOARD |
|
|
3 |
CR210 (VT) |
20 |
CTRL MOD. - SENSOR SEAT BELT TENSION FRONT PASSENGER OUTBOARD + |
|

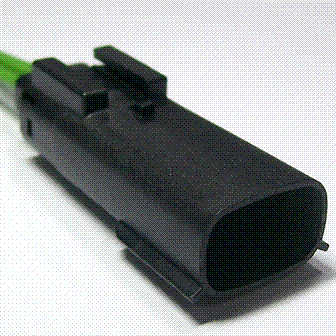

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1180 |
Service Part Number: AU2Z-14S411-ASA Gauge: 16 Pin material: Silver Cavities: 3 Vehicle Uses Speaker - Tweeter - RH - Rear |
