Connector End View (C1542) - VARIABLE CAMSHAFT TIMING 12 (VCT12) SOLENOID

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CBB33 (WH-BN)

18

FUSE - 33 OR CIRCUIT BREAKER

1.6L GTDI

2

CE508 (VT-BN)

18

CTRL MOD. - EXHAUST GAS RECIRCULATION

1.6L GTDI

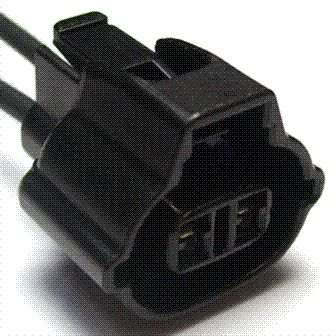

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1269

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-SA

Gauge:

14

Pin material:

Tin

Cavities:

2

Vehicle Uses

Solenoid - Engine Variable Timing
