Accessory Drive - Component Location

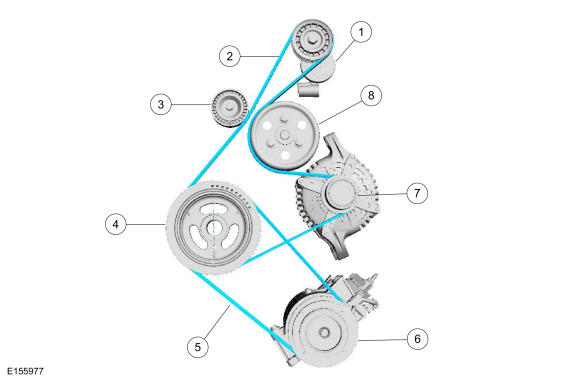

Fig 1: Accessory Drive Belt Routing & Component Location

Courtesy of FORD MOTOR COMPANY

Item	Description
1	Accessory drive belt tensioner
2	Accessory drive belt
3	Drive belt idler pulley assembly
4	Crankshaft belt pulley
5	Belt - A/C compressor
6	Pulley - A/C compressor
7	Generator pulley
8	Coolant pump pulley
