Connector End View (C1064) - ENGINE COOLANT TEMPERATURE (ECT) SENSOR

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

VE716 (YE)

20

SENSOR - ENGINE COOLANT TEMPERATURE (ECT)

2

RE141 (BN-GN)

20

CTRL MOD. - POWERTRAIN # SIGNAL RETURN (SIGRTN)

1.6L GTDI

2

RE141 (BU-GN)

20

CTRL MOD. - POWERTRAIN # SIGNAL RETURN (SIGRTN)

1.0L

Available Pigtail Kits

Pigtail Kit Part Number

WPT-989

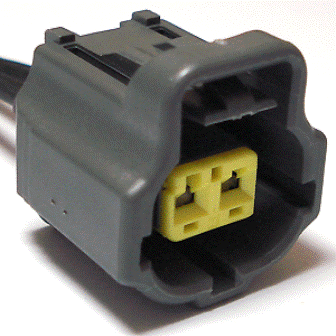

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-HYB

Gauge:

14

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses

Sensor - Coolant Temperature

Sensor - Cylinder Head Temperature

Sensor - Transmission Oil Temperature
