Connector End View (C9074) - REAR PARKING AID SPEAKER

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CMP09 (BN-BU)

22

CTRL MOD. - PARKING AID # SOUNDER REAR +

2

RMP09 (BU-GN)

22

CTRL MOD. - PARKING AID # SOUNDER REAR -

Available Pigtail Kits

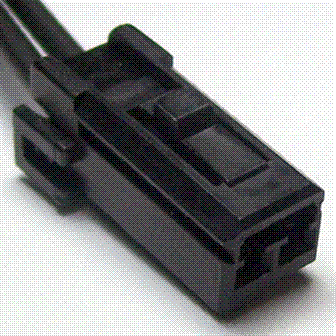

Pigtail Kit Part Number

WPT-1322

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-CSAB

Gauge:

18

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses

Lamp - Dome

Lamp - Dome/Map

Module - Radio Power Antenna

Module - Warning Chime/ Beltminder

Solenoid - Brake Shift Park Interlock

Speaker - Reverse Park Aid (RPA)

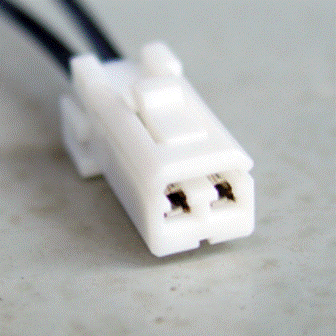

Pigtail Kit Part Number

WPT-675

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-CSAA

Gauge:

16

Pin material:

Tin

Cavities:

2

Vehicle Uses

Lamp - PRNDL Indicator

Module - Driver Door

Module - Heated Seat (driver)

Sensor - Fuel Tank Temperature
