Connector End View (C4218) - REAR WINDOW WIPER MOTOR

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

GD352 (BK)

16

GROUND - PILLAR D RIGHT # 2ND POINT

2

CBB45 (BK)

16

FUSE - 45 OR CIRCUIT BREAKER

3

CRW05 (BK)

16

RELAY - REAR WIPER

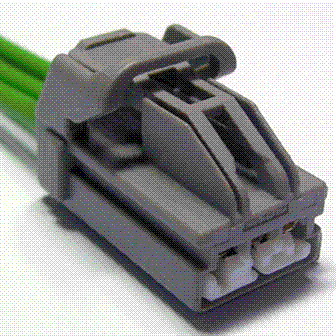

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1147

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BHAB

Gauge:

16

Pin material:

Silver

Cavities:

3

Vehicle Uses

Motor - Rear Window Wiper

Motor - Seat Recline

Refrigerator
