Connector End View (C4009) - REAR OUTER PARKING AID SENSOR, LH

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

LMP07 (BU-WH)

22

CTRL MOD. - PARKING AID # SENSORS REAR +

2

VMP15 (YE-GN)

20

SENSOR - PARKING AID # REAR # (LEFT OUTER)

3

RMP07 (GN-WH)

22

CTRL MOD. - PARKING AID # SENSORS REAR -

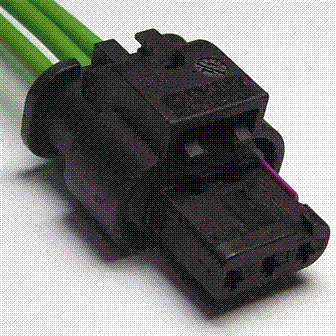

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1287

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-YA

Gauge:

18

Pin material:

Silver

Cavities:

3

Vehicle Uses

Coil - Ignition

Sensor - Front Park Aid (FPA)

Sensor - Reverse Park Aide (RPA)
