Connector End View (C3637) - SAFETY BELT LOAD LIMITING RETRACTOR, PASSENGER

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CR147 (GN-OG)

20

CTRL MOD. - SEAT BELT SHOULDER ADAPTIVE LOAD LIMITING PASSENGER OUTBOARD +

2

RR147 (YE-VT)

20

CTRL MOD. - SEAT BELT SHOULDER ADAPTIVE LOAD LIMITING PASSENGER OUTBOARD -

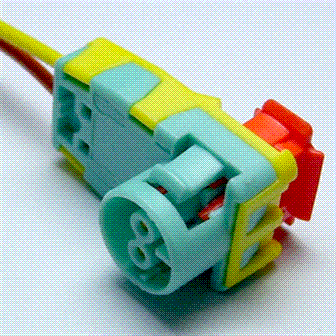

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1226

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BJA

Gauge:

20

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses

Squib - Airbag (Passenger)
