Connector End View (C3064) - REAR PASSENGER POWER OUTLET SOCKET

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

GD311 (BK)

12

GROUND - CONSOLE FRONT CENTER

2

CBP19 (VT-RD)

12

FUSE - 19 OR CIRCUIT BREAKER

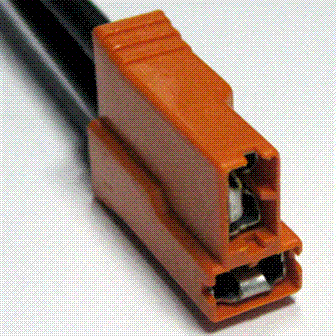

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1158

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-ACAB

Gauge:

12

Pin material:

Tin

Cavities:

2

Vehicle Uses

Cigar Lighter

Power Point
