Connector End View (C1917) - HEATED OXYGEN SENSOR (HO2S) #12

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CBB33 (WH-BN)

18

FUSE OR CIRCUIT BREAKER

2

CE233 (WH-OG)

18

SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HTR12)

3

RE242 (GN)

18

CTRL MOD. - POWERTRAIN # HEATED OXYGEN SENSOR POST CAT 1ST OR UNIQUE OR COMMON (HEGO_RTN)

4

VE731 (YE-GN)

18

SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12)

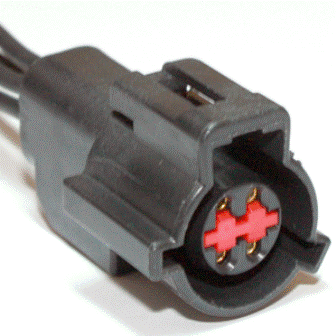

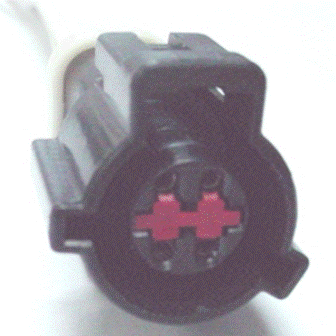

Available Pigtail Kits

Pigtail Kit Part Number

WPT-112

Courtesy of FORD MOTOR COMPANY

Service Part Number:

1U2Z-14S411-LA

Gauge:

14

Pin material:

Gold

Cavities:

4

Vehicle Uses

Sensor - Catalyst Monitor

Sensor - Cylinder Head Temperature

Sensor - O2 (HEGO/ EGO)

Pigtail Kit Part Number

WPT-152

Courtesy of FORD MOTOR COMPANY

Service Part Number:

1U2Z-14S411-BGA

Gauge:

14

Pin material:

Tin (greased)

Cavities:

4

Vehicle Uses

Fuel Pump/Sending Unit

Lamp - Fog/Driving

Module - Radio Power Antenna

Sensor - Air Suspension

Sensor - Catalyst Monitor

Sensor - Cylinder Head Temperature

Sensor - O2 (HEGO/ EGO)

Switch - Door Cylinder Disarm (Anti-Theft)

Switch - Door Lock (LH)

Switch - Door Lock (RH)

Switch - Hood Ajar
