Connector End View (C1737) - WINDSHIELD HEATED WASHER JET RH

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CBB37 (WH)

20

FUSE - 37 OR CIRCUIT BREAKER

2

GD132 (BK-YE)

20

GROUND - HEADLAMP PANEL/GOR RIGHT # 2ND POINT

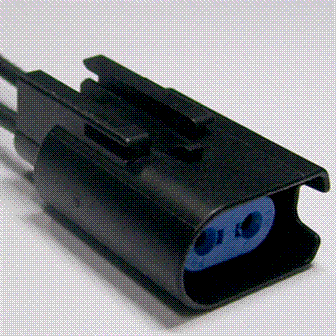

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1359

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-UDB

Gauge:

16

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses

Diode - Blower Motor Relay

Lamp - CHMSL (Center High Mount Stop Lamp)

Mirror - Sideview

Relay - Blower Motor

Sensor - Speed

Switch - Hood Ajar

Switch - Radio Antenna
