Connector End View (C1656) - PASSENGER SIDE WINDSHIELD WIPER MOTOR
Connector: C1656
Description
PASSENGER SIDE WINDSHIELD WIPER MOTOR
Color
Harness
14K733
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CRW00 (BN-RD) |
12 |
BATTERY VOLTAGE |
|
|
2 |
GD131 (BK) |
12 |
GROUND - HEADLAMP PANEL/GOR RIGHT |
|
|
3 |
CRW00 (GY-VT) |
20 |
LIN 8 (WMM) |
|
|
4 |
* |
* |
Not Used |
|

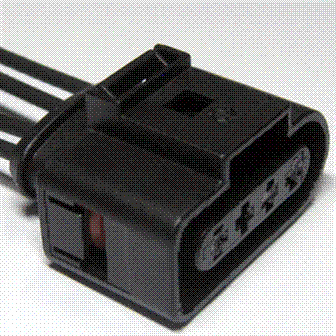

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1135 |
Service Part Number: BU2Z-14S411-JA Gauge: 14 Pin material: Tin (greased) Cavities: 4 Vehicle Uses Motor - Windshield Wiper |
