Connector End View (C1650) - TURBOCHARGER BYPASS (TCBY) VALVE

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CBB34 (VT-BN)

18

FUSE - 34 OR CIRCUIT BREAKER

2

CE167 (YE-OG)

18

CTRL MOD. - POWERTRAIN # BYPASS SOLENOID VALVE

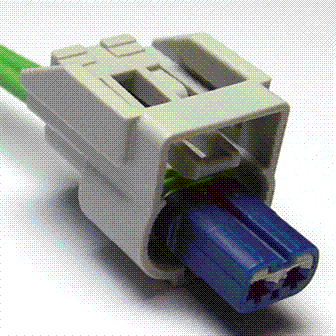

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1303

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ATA

Gauge:

16

Pin material:

Silver

Cavities:

2

Vehicle Uses

Solenoid - Turbo Charger Bypass
