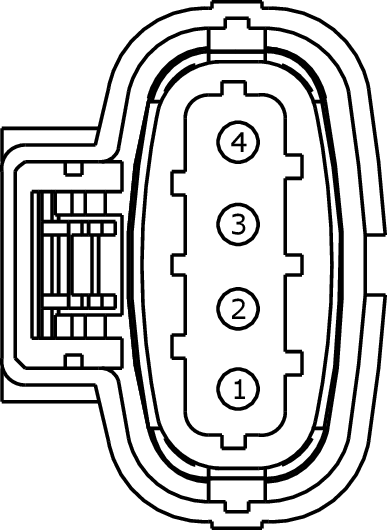

Connector End View (C1588) - TURBOCHARGER BOOST PRESSURE/AIR COOLER TEMPERATURE (TCBP/ACT) SENSOR

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

RE804 (GY-BU)

18

SENSOR- SIGNAL RETURN (SIGRTN)

1.6L GTDI

1

RE804 (GN-BU)

20

SENSOR- SIGNAL RETURN (SIGRTN)

1.0L

2

VE804 (GN-BN)

18

SENSOR- CHARGE AIR COOLER TEMPERATURE (CACT)

1.0L/1.6L GTDI

3

LE329 (BU)

20

CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE (VREF)

1.0L/1.6L GTDI

4

VE805 (GY-OG)

20

SENSOR- TURBOCHARGER BOOST PRESSURE (TCBP)

1.6L GTDI

4

VE805 (GN-BN)

18

SENSOR- TURBOCHARGER BOOST PRESSURE (TCBP)

1.0L

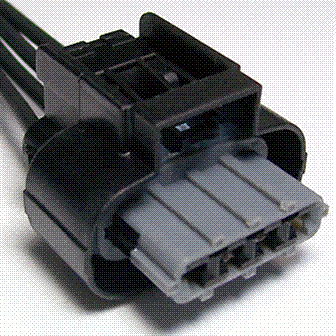

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1232

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-ATA

Gauge:

14

Pin material:

Tin (greased)

Cavities:

4

Vehicle Uses

Sensor - Manifold Pressure/Intake Temperature
