Connector End View (C337) - SIDE AIR BAG MODULE, PASSENGER
Connector: C337
Description
SIDE AIR BAG MODULE, PASSENGER
Color
Harness
14B723
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
RR105 (BK-RD) |
20 |
CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE - |
|
|
2 |
CR105 (GN-OG) |
20 |
CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE + |
|

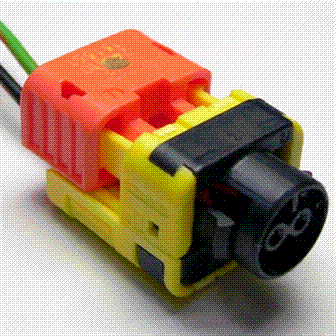

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1228 |
Service Part Number: BU2Z-14S411-BMA Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses Airbag - Side Curtain |
