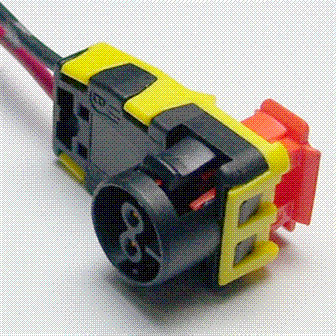

Connector End View (C323) - DRIVER SAFETY BELT RETRACTOR PRETENSIONER

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

RR120 (BN-GN)

20

CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE -

FNA

1

CR120 (BU-OG)

20

CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE +

FOE

2

RR120 (BN-GN)

20

CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE -

FOE

2

CR120 (BU-OG)

20

CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE +

FNA

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1225

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BHA

Gauge:

20

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses

Airbag - Side Curtain

Pretensioner - Seat Belt (Driver)

Pretensioner - Seat Belt (Passenger)

Sensor - Side Impact

Squib - Airbag (Driver)

Squib - Airbag (Passenger)
