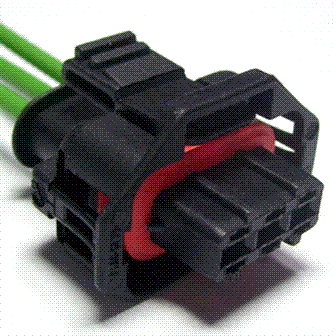

Connector End View (C106) - FUEL RAIL PRESSURE (FRP) SENSOR

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

RE238 (GN-VT)

20

SENSOR - FUEL PRESSURE SENSOR (SIGRTN)

2

VE727 (BU-BN)

20

SENSOR - FUEL LOW PRESSURE (FLP)

3

LE238 (GY)

20

CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE (VREF)

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1099

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-BBA

Gauge:

14

Pin material:

Silver

Cavities:

3

Vehicle Uses

Fuel Injector

Pump - Fuel Injection

Sensor - Manifold Absolute Pressure (MAP)

Solenoid - Fuel Volume Regulator Control
