Brake Pedal and Bracket - LHD FWD: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
- 1.

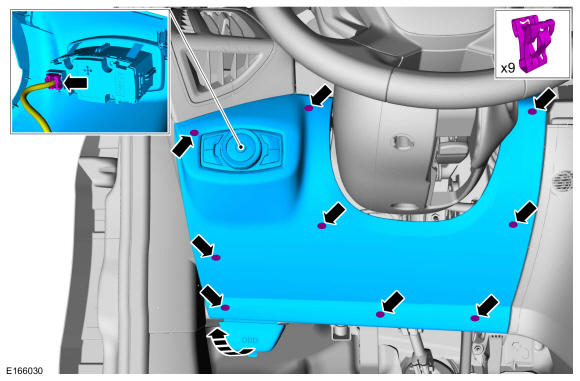

Pull outward the steering column opening cover detaching the clips.
- 2.
Disconnect the headlamp switch electrical connector and remove the steering column opening cover.
- 1.
- 2.
- 1.NOTE: Make sure that the brake pedal remains in the rest position.

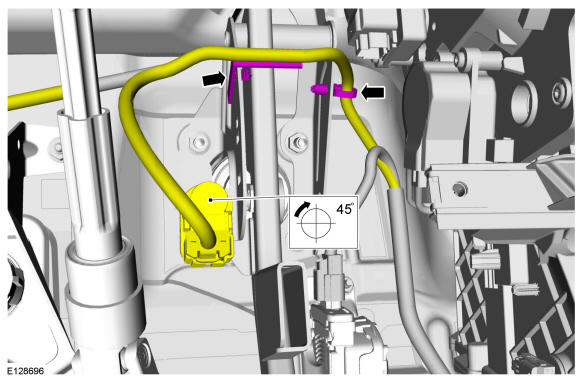

Detach the harness retainers.
- 1.
- 2.
Rotate the brake switch at 45° and position the brake switch and wiring aside.
- 4.

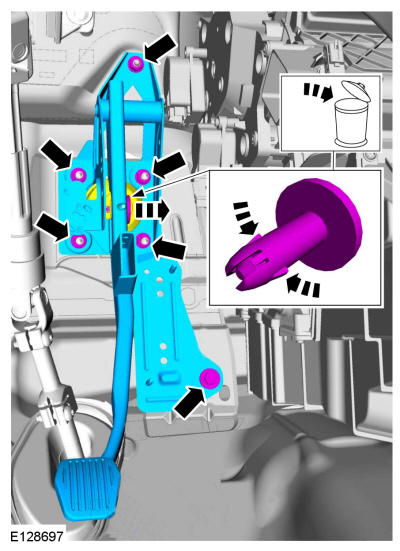

- Remove and discard the booster push rod clevis-locking pin.
- Remove the nuts, the bolt and the brake pedal and bracket.
