Rear Bumper Cover: Removal

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2.

Remove the rear bumper cover upper screws.

GFD47396

Courtesy of FORD MOTOR COMPANY

3.

Both sides, If equipped. Remove the push pin, release the tabs, remove the hook and mud flap.

GFD47397

Courtesy of FORD MOTOR COMPANY

4.

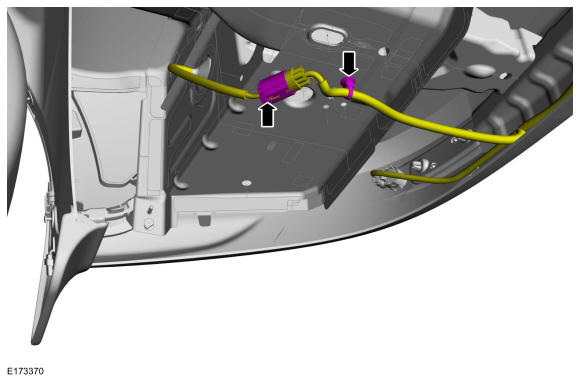

If equipped. Disconnect the rear bumper cover electrical connector and detach the wiring retainer.

GFD47398

Courtesy of FORD MOTOR COMPANY

5.

Release the tabs and remove the rear bumper cover.

GFD47399

Courtesy of FORD MOTOR COMPANY
