Passenger Seat Backrest Cover - Vehicles With: Fold Flat Seat: Removal

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the seat. Refer to: Front Seat

2.

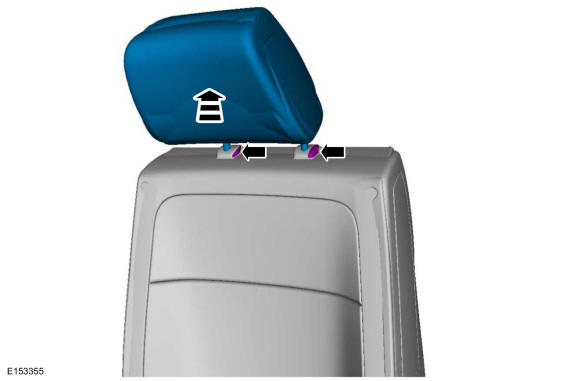

NOTE: Typical head restraint guide sleeve shown below, others similar.

Depress the locking tabs and remove the head restraint.

GFD42986

Courtesy of FORD MOTOR COMPANY

3.

NOTE: Follow the unique instructions or graphics for this in installation.

NOTE: Seat backrest cover removed for clarity.

Remove the head restraint guide sleeves.

Use the General Equipment: Flat Headed Screw Driver

GFD42987

Courtesy of FORD MOTOR COMPANY

4.

Discard the head restraint guide sleeves.

GFD42988

Courtesy of FORD MOTOR COMPANY

5.

Remove the backrest recline handle.
1. 1.

  Remove the fastener cover.
1. 2.

  Remove the bolt.
  Torque

  : 80 lb.in (9 Nm)

GFD47086

Courtesy of FORD MOTOR COMPANY

6.

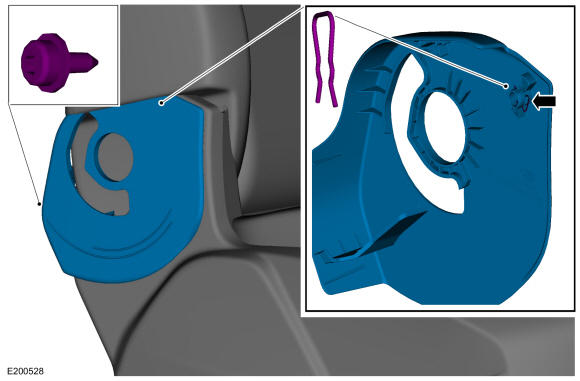

Remove the screw and U-clip. Remove the outboard upper side shield.
Torque

: 27 lb.in (3 Nm)

GFD47103

Courtesy of FORD MOTOR COMPANY

7.

Remove the screws and remove the outboard lower side shield.
Torque

: 27 lb.in (3 Nm)

GFD47104

Courtesy of FORD MOTOR COMPANY

8.

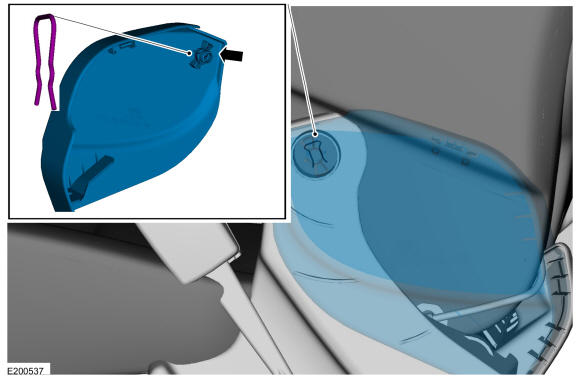

Remove the U-clip and remove the inboard upper side shield.

GFD47105

Courtesy of FORD MOTOR COMPANY

9.

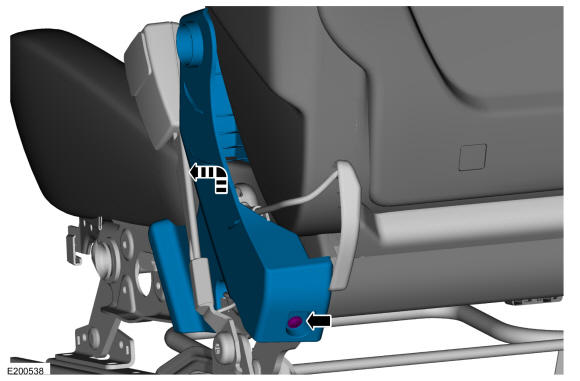

Remove the screw and remove the inboard lower side shield.
Torque

: 27 lb.in (3 Nm)

GFD47106

Courtesy of FORD MOTOR COMPANY

10.

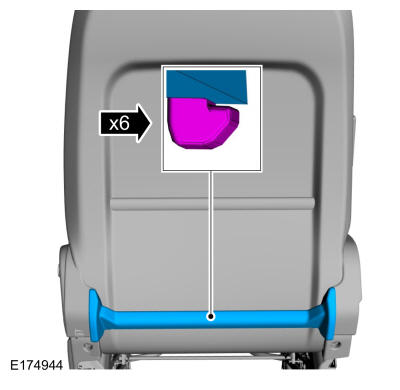

Release the locking clips and remove the backrest lower trim.

GFD47110

Courtesy of FORD MOTOR COMPANY

11.

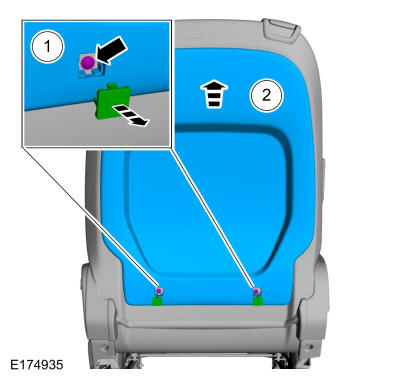

Remove the seat back panel.
1. 1.

  Remove the covers and screws.
  Torque

  : 27 lb.in (3 Nm)
1. 2.

  Slide the panel upward.

GFD47111

Courtesy of FORD MOTOR COMPANY

12.

Release the backrest cover lower J-clip.

GFD47112

Courtesy of FORD MOTOR COMPANY

13.

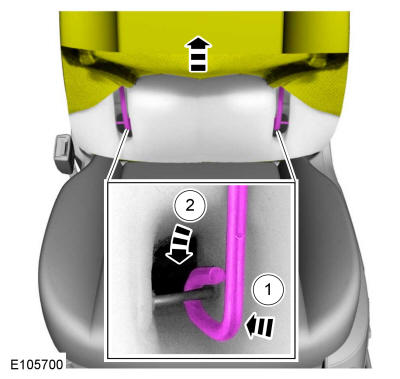

Partially invert the backrest cover and release it from the backrest foam.
1. 1.

  Press the backrest cover support wire inward.
1. 2.

  Rotate the backrest cover support wire downward and release it from backrest foam.

GFD47092

Courtesy of FORD MOTOR COMPANY

14.

Remove the backrest fold flat handle assembly.
1. 1.

  Lift the fold flat release handle.
1. 2.

  Insert the screwdrivers into the fold flat handle bezel openings to release the locking tabs.
  Use the General Equipment: Flat Headed Screw Driver
1. 3.

  Lift and remove the handle assembly.

GFD47113

Courtesy of FORD MOTOR COMPANY

15.

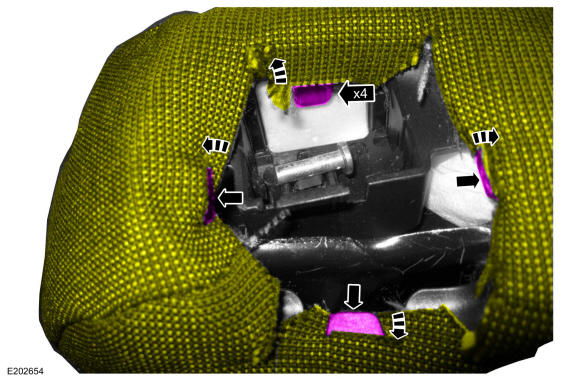

Release the backrest cover from the fold flat mechanism tabs.

GFD47114

Courtesy of FORD MOTOR COMPANY

16.

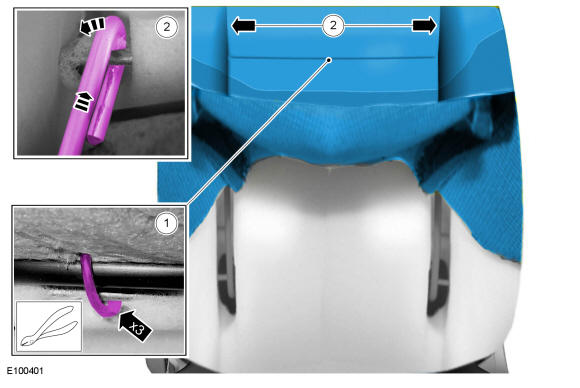

Remove the backrest cover.
1. 1.

  NOTE: Follow the unique instruction or graphics for this step in installation.

  Remove the hog rings.
1. 2.

  Push upward and rotate the backrest cover support wire and release it from the backrest foam.

GFD47094

Courtesy of FORD MOTOR COMPANY
