In-Vehicle Crossbeam: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Remove the instrument panel wiring harness.
- 2.

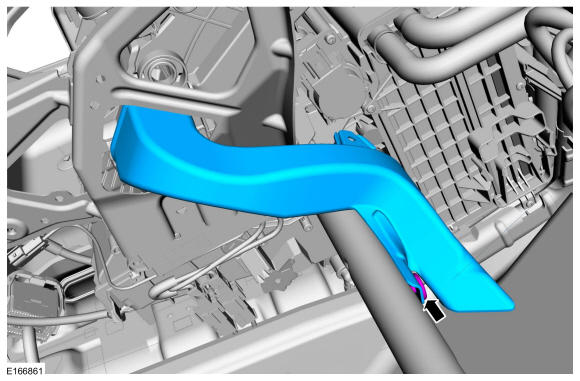

Remove the retainer and the RH footwell vent duct.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

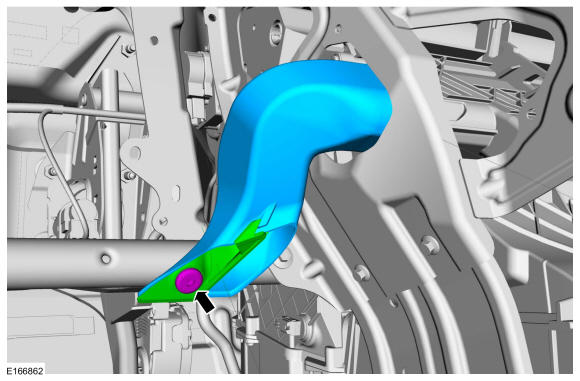

Remove the retainer, the air deflector and the LH footwell vent duct.
 Courtesy of FORD MOTOR COMPANY
|
- 4.
- 1.

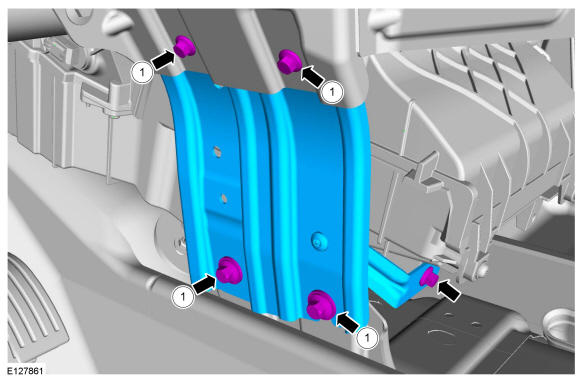

Remove the bolts and the LH instrument panel lower support bracket.Torque
: 18 lb.ft (25 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 5.

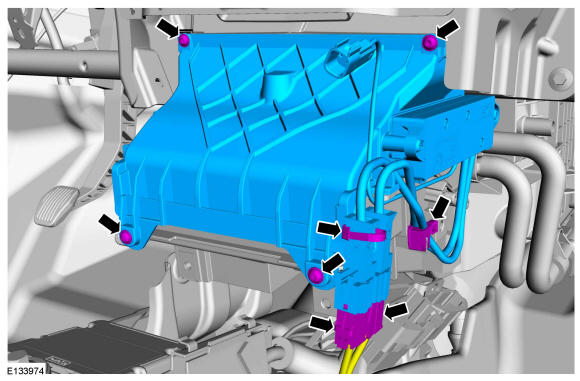

- Remove the retainers and the air plenum bezel.
- Disconnect the electrical connectors.
 Courtesy of FORD MOTOR COMPANY
|
- 6.
Remove the vehicle cross beam support bolts.Torque
: 89 lb.in (10 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 8.

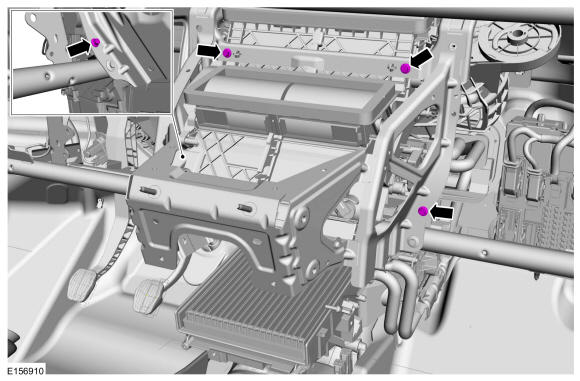

Remove the in-vehicle cross beam to cowl bolts.Torque
: 18 lb.ft (25 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 9.

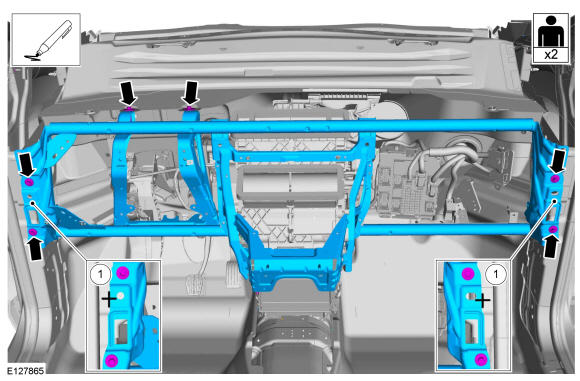

Remove the bolts and the in-vehicle crossbeam assembly.Torque
: 18 lb.ft (25 Nm)
 Courtesy of FORD MOTOR COMPANY
|
