Rear Parking Aid Camera: Removal

Vehicles with liftgate

1. 1.

   Remove the liftgate release handle. REFER to: LIFTGATE RELEASE HANDLE

All vehicles

1. 2.

   Remove the rear door moulding. REFER to: REAR DOOR MOULDING

1. 3.

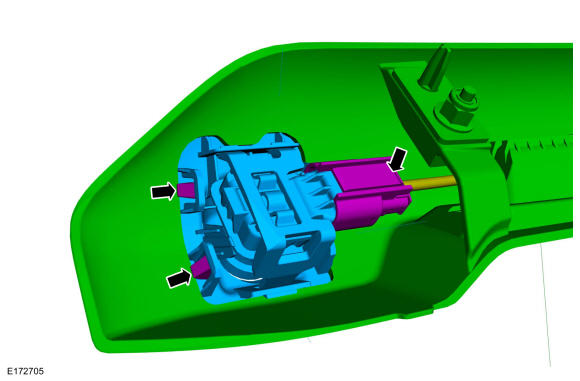

   • Disconnect the rear parking aid camera electrical connector.
   • Release the tabs and remove the rear parking aid camera assembly.

Courtesy of FORD MOTOR COMPANY

1. 4.

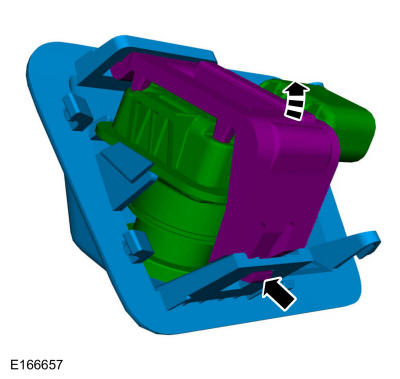

   Remove the rear parking aid camera.
   • Release the tab.
   • Remove the rear parking aid camera bracket.

Courtesy of FORD MOTOR COMPANY
