Connector End View (C567) - SIDE IMPACT SENSOR, DRIVER FRONT DOOR
Connector:C567
Description
SIDE IMPACT SENSOR, DRIVER FRONT DOOR
Color
BK
Harness
14631
Base Part #
14B345
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VR217 (GY-YE) | 20 | SENSOR - SIDE IMPACT FRONT DRIVER SIDE | |
| 2 | RR131 (VT-GY) | 20 | CTRL MOD. - SENSOR SIDE IMPACT FRONT DRIVER SIDE - |

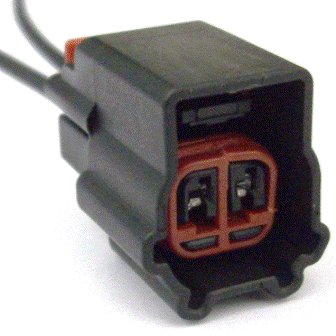

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-948 |
Service Part Number: 3U2Z-14S411-EKB Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Motor - Windshield Washer Fluid Pump Sensor - Side Impact |
