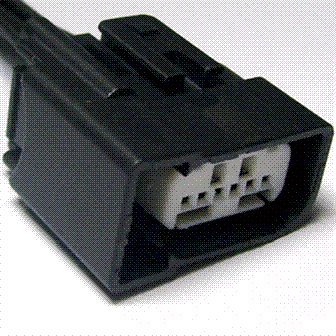

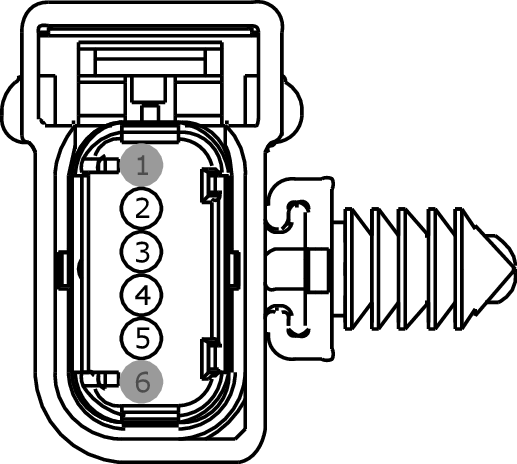

Connector End View (C543) - EXTERIOR DOOR HANDLE, LEFT FRONT
Connector:C543
Description
EXTERIOR DOOR HANDLE, LEFT FRONT
Color
BK
Harness
14631
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | VPK39 (GN-VT) | 22 | SENSOR - KEYLESS VEHICLE HANDLE DRIVER POWER/DATA | |
| 3 | VPK01 (BN-YE) | 22 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE DRIVER + | |
| 4 | RPK01 (WH-GN) | 22 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE DRIVER - | |
| 5 | RPK39 (VT-OG) | 22 | SENSOR - KEYLESS VEHICLE HANDLE | |
| 6 | * | * | Not Used |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1329 |
Service Part Number: DU2Z-14S411-EA Gauge: 20 Pin material: Tin Cavities: 6 Vehicle Uses Antenna - Keyless Entry Handle - Decklid Switch - Keyless Entry Switch - Seatbelt |
