Connector End View (C523B) - SPEAKER, LEFT FRONT
Connector:C523B
Description
SPEAKER, LEFT FRONT
Color
BK
Harness
14631
Base Part #
18808
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VME08 (GN-OG) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT TWEETER + | |
| 2 | RME08 (GY-OG) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT TWEETER - |

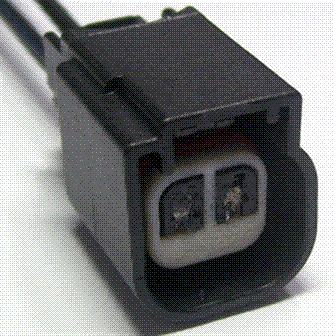

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1052 |
Service Part Number: 3U2Z-14S411-JLB Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses A/C Compressor Clutch Actuator - Door Lock Actuator - Door Lock - LH - Front Actuator - Door Lock - LH - Rear Actuator - Door Lock - LH - Sliding Door Actuator - Door Lock - RH - Front Actuator - Door Lock - RH - Rear Actuator - Door Lock - RH - Sliding Door Actuator - Liftgate Glass Lamp - Headlamp - Low Beam Lamp - License Lamp - Side Marker Motor - Power Window - LH - Rear Pump - Fuel (External) Sensor - Side Impact Solenoid - Brake Shift Park Interlock Speaker - Door (front) Speaker - Door (rear) Speaker - Front Speaker - Rear Speaker - Tweeter - LH - Front Speaker - Tweeter - LH - Rear Speaker - Tweeter - RH - Front Speaker - Tweeter - RH - Rear |
