Connector End View (C521) - EXTERIOR REAR VIEW MIRROR, DRIVER SIDE

Connector:C521

Description

EXTERIOR REAR VIEW MIRROR, DRIVER SIDE

Color

Harness

14631

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPM29 (GN)	22	CTRL MOD. - LEFT MIRROR UP	memory
1	CPM17 (BU-GN)	22	SWITCH - POWER MIRROR # LEFT MIRROR UPWARD (IF PLUS)	w/o memory
2	CPM03 (BU-WH)	22	CTRL MOD. - LEFT MIRROR COMMON GLASS ADJUSTMENT	memory
2	CPM23 (GY)	22	SWITCH - POWER MIRROR # COMMON ALL MOTORS (LEFT AND RIGHT)	w/o memory
3	*	*	Not Used
4	CPM28 (BU-BN)	22	CTRL MOD. - LEFT MIRROR RIGHT	memory
4	CPM16 (BN-BU)	22	SWITCH - POWER MIRROR # LEFT MIRROR RIGHTWARD (IF PLUS)	w/o memory
5	CLN25 (VT)	22	RELAY - PUDDLE LAMPS (KERB ILLUM.)
6	CRD17 (GY)	22	RELAY - HEATER MIRROR
7	GD233 (BK)	22	GROUND - COWL SIDE/PILLAR A LEFT (BC3T)
8	*	*	Not Used
9	VPM36 (BN-YE)	22	SENSOR - LEFT MIRROR POSITION # VERTICAL	memory
9	CAP12 (VT-OG)	18	POLICE - FLASHER REAR LEFT	w/o memory
10	CAP06 (GY-OG)	20	POLICE - WIGWAG SYNC	w/o memory
10	LPM30 (GY-VT)	22	CTRL MOD. - SENSORS MIRROR POSITION (LEFT) +	memory
11	VPM35 (YE-BU)	22	SENSOR - LEFT MIRROR POSITION # HORIZONTAL	memory
11	CAP14 (GY-BN)	20	POLICE - BUTTON FUNCTION 1	w/o memory
12	GD233 (BK)	18	# N/A	w/o memory
12	RPM30 (YE)	22	CTRL MOD. - SENSORS MIRROR POSITION (LEFT) -	memory
13	LRD12 (BU-GY)	22	CTRL MOD. - ELECTROCHROMIC MIRROR +	memory
14	RRD12 (BN)	22	CTRL MOD. - ELECTROCHROMIC MIRROR -	memory
15	CRB04 (YE-GN)	22	SENSOR - BLINDSPOT WARNING LEFT HAND # WARNING ALERT	memory
16	GD233 (BK)	22	GROUND - COWL SIDE/PILLAR A LEFT (BC3T)

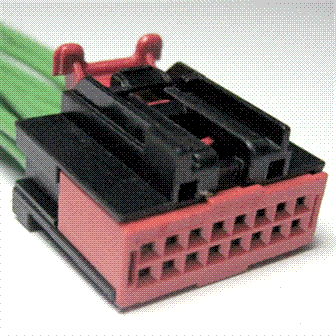

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1152

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-AJD

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Mirror - Sideview

Mirror - Vanity

Overhead Console -Inline (Female)

Switch - Multifunction
